Husqvarna Yth2248B - Mower Deck & Cutting Deck

Name: Husqvarna Yth2248B - Mower Deck & Cutting Deck
SKU: yth2248b_2004_06_mower_deck_cutting_deck-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth2248B - Mower Deck & Cutting Deck

Description

Husqvarna Yth2248B

Model Year - 2004-06

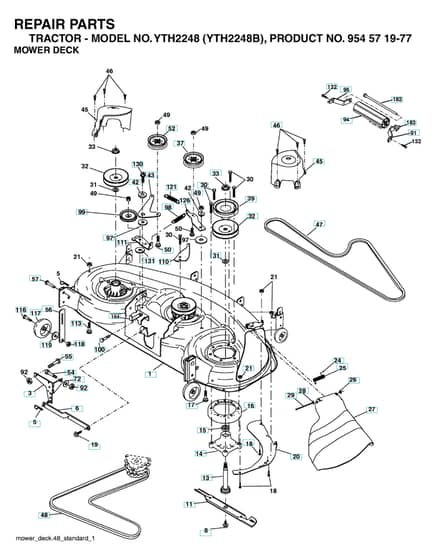

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 17 43-57 Available to backorder	Palier De Lame Complet	£113.96 £94.97
3	HV532 13 80-17 Available to backorder	Bracke	£20.06 £16.72
6	HV532 17 80-24 Available to backorder	Lever	£23.28 £19.40
11	HV532 18 00-54 Available to backorder	Blade	£27.88 £23.23
13	HV532 17 51-47 Available to backorder	Shaft	£79.88 £66.57
14	HV532 17 43-58 Available to backorder	Mandrel	£69.85 £58.21
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.24 £11.03
18	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
19	HV532 13 28-27 Available to backorder	Spec. Bolt	£7.12 £5.93
20	HV532 17 43-78 Available to backorder	Baffle	£34.94 £29.12
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
29	HV532 13 14-91 Available to backorder	Shaft	£9.46 £7.88
31	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
37	HV532 17 79-68 Available to backorder	Pulley	£58.94 £49.12
39	HV532 17 43-75 Available to backorder	Pulley	£39.58 £32.98
45	HV532 18 08-06 Available to backorder	Cover	£18.12 £15.10
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
47	HV532 18 08-08 Available to backorder	V-Belt	£86.18 £71.82
48	HV532 17 43-68 Available to backorder	V-Belt	£90.25 £75.21
54	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
94	HV532 17 60-66 Available to backorder	Roller	£15.80 £13.17
95	HV532 18 05-34 Available to backorder	Bracket	£13.58 £11.32
97	HV532 17 85-15 In stock	Washer	Was £8.71 £7.26 Special Price £5.82 £4.85
98	HV532 17 94-79 Available to backorder	Spring	£17.46 £14.55
100	HV872 11 06-16 Available to backorder	Bolt	£7.12 £5.93
111	HV532 17 46-10 Available to backorder	Arm	£12.28 £10.23
113	HV872 11 05-06 Available to backorder	Bolt	£4.02 £3.35
117	HV532 13 39-57 Available to backorder	Wheel	£26.12 £21.77
121	HV532 17 43-71 Available to backorder	Spring	£20.72 £17.27
130	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
132	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
