Husqvarna Yth20K42 - Mower Deck & Cutting Deck

Name: Husqvarna Yth20K42 - Mower Deck & Cutting Deck
SKU: yth20k42_mower_deck_cutting_deck-group
Price: 1.66 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth20K42 - Mower Deck & Cutting Deck

Description

Husqvarna Yth20K42

Model Year -

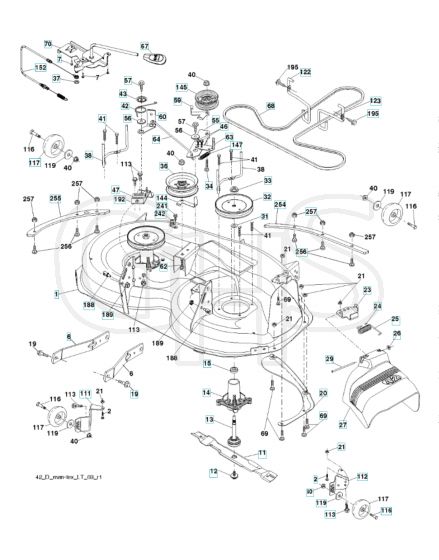

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 40 12-25 Out of stock	Cutting Deckfor 96041027600. 96041027601	£269.28 £224.40
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
7	HV532 41 63-58 Out of stock	Screw	£1.99 £1.66
11	HV532 13 89-71 Out of stock	Blade	£31.91 £26.59
12	HV532 19 30-03 In stock	Screwfor 96041027600. 96041027601	£13.56 £11.30
12	HV584 30 93-01 In stock	Screwfor 96043027400. 96043027500	£8.16 £6.80
13	HV587 81 97-01 Out of stock	Mandrel	£150.84 £125.70
15	HV532 11 04-85 Out of stock	Bearingfor 96041027600. 96041027601	£8.52 £7.10
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
20	HV532 15 97-70 Out of stock	Rail	£26.74 £22.28
23	HV532 19 25-57 Out of stock	Hinge	£13.06 £10.88
24	HV532 10 53-04 Out of stock	Hub Cap	£3.35 £2.79
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£2.16 £1.80
27	HV532 40 30-04 Out of stock	Shield	£56.57 £47.14
29	HV532 13 14-91 Out of stock	Shaft	£14.76 £12.30
31	HV532 18 76-90 Out of stock	Washerfor 96041027600. 96041027601	£3.48 £2.90
38	HV589 67 61-03 Out of stock	Keeper	£10.51 £8.76
41	HV584 95 39-01 Out of stock	Bolt	£5.60 £4.67
42	HV532 19 84-10 Out of stock	Spring	£4.86 £4.05
43	HV532 19 72-56 Out of stock	Spring	£4.03 £3.36
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 19 72-50 Out of stock	Bracket	£8.71 £7.26
55	HV532 43 71-10 Out of stock	Arm	£18.04 £15.03
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£6.11 £5.09
62	HV872 11 06-16 Out of stock	Bolt	£6.85 £5.71
64	HV532 19 99-18 Out of stock	Link Brake	£10.57 £8.81
67	HV532 40 30-12 Out of stock	Handle	£13.06 £10.88
69	HV596 13 64-01 Out of stock	Bolt	£3.26 £2.72
113	HV817 00 05-10 Out of stock	Bolt	£3.48 £2.90
116	HV596 43 44-04 Out of stock	Boltfor 96041027600. 96041027601	£5.65 £4.71
117	HV589 52 73-01 Out of stock	Wheelfor 96041027600. 96041027601	£19.82 £16.52
117	HV589 52 74-01 Out of stock	Wheelfor 96043027400. 96043027500	£15.19 £12.66
122	HV531 16 95-01 Out of stock	Belt Guidelh	£18.73 £15.61
123	HV531 16 97-01 Out of stock	Belt Guiderh	£12.98 £10.82
147	HV532 40 19-71 Out of stock	Spring	£5.34 £4.45
152	HV532 43 51-10 Out of stock	Cablefor 96041027600	£53.46 £44.55
152	HV584 24 35-01 Out of stock	Cablefor 96041027601. 96043027400. 96043027500	£63.48 £52.90
188	HV532 19 51-61 Out of stock	Stud	£2.86 £2.38
189	HV873 90 05-00 Out of stock	Nut	£2.60 £2.17
195	HV817 00 06-12 Out of stock	Screw	£5.60 £4.67
241	HV532 15 29-27 In stock	Screw	£2.48 £2.07
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.16 £4.30
254	HV585 31 68-05 Out of stock	Reinforcement Platefor 96043027400. 96043027500	£20.52 £17.10
255	HV585 31 70-05 Out of stock	Reinforcement Platefor 96043027400. 96043027500	£20.52 £17.10
256	HV539 10 98-00 Out of stock	Boltfor 96043027400. 96043027500	£3.04 £2.53
