Husqvarna Yth2048 A - Mower Deck & Cutting Deck

Name: Husqvarna Yth2048 A - Mower Deck & Cutting Deck
SKU: yth2048_a_2001_02_mower_deck_cutting_deck-group
Price: 1.69 GBP
Availability: InStock

Part No. yth2048_a_2001_02_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth2048 A - Mower Deck & Cutting Deck

Description

Husqvarna Yth2048 A

Model Year - 2001-02

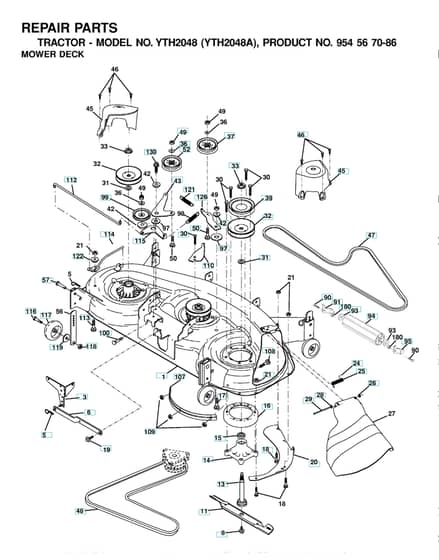

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 17 43-56 Available to backorder	Mandrel	£104.52 £87.10
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
13	HV532 17 43-60 Available to backorder	Shaft	£57.74 £48.12
14	HV532 17 43-58 Available to backorder	Mandrel	£68.16 £56.80
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.69 £11.41
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
20	HV532 17 43-78 Available to backorder	Baffle	£34.60 £28.83
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
37	HV532 17 34-37 Available to backorder	Pulley	£56.11 £46.76
39	HV532 17 43-75 In stock	Pulley	£39.94 £33.28
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
48	HV532 17 43-68 Available to backorder	V-Belt	£84.00 £70.00
49	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
94	HV532 17 60-66 Available to backorder	Roller	£15.66 £13.05
100	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
109	HV873 68 04-00 Available to backorder	Nut	£2.94 £2.45
113	HV872 11 05-08 Available to backorder	Bolt	£3.59 £2.99
117	HV532 13 39-57 Available to backorder	Wheel	£25.87 £21.56
121	HV532 17 43-71 Available to backorder	Spring	£20.50 £17.08
180	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
