Husqvarna Yth2048 A - Chassis & Enclosures

Husqvarna Yth2048 A - Chassis & Enclosures

Part No. yth2048_a_2001_02_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

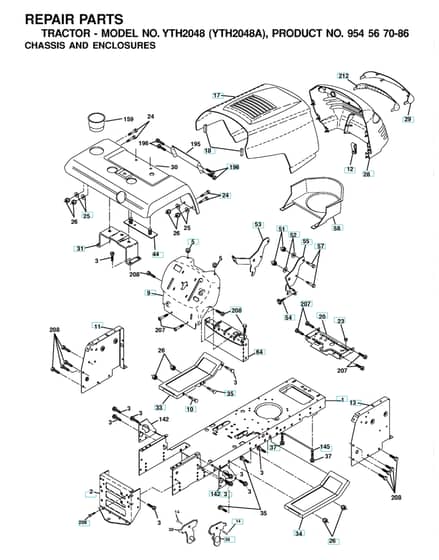

Husqvarna Yth2048 A - Chassis & Enclosures

Husqvarna Yth2048 A - Chassis & Enclosures

Description

Husqvarna Yth2048 A

Model Year - 2001-02

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV532 17 46-19 Available to backorder	Frame		£370.08 £308.40
	2		HV532 17 65-54 Available to backorder	Plate		£42.80 £35.67
	14		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	24		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	38		HV532 17 57-10 Available to backorder	Bracket		£17.94 £14.95
	44		HV532 14 06-75 Available to backorder	Strap		£8.34 £6.95
	52		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	53		HV532 14 46-97 Available to backorder	Bracket		£18.60 £15.50
	54		HV532 16 14-64 Available to backorder	Screw		£1.20 £1.00
	206		HV532 17 01-65 Available to backorder	Bolt		£5.24 £4.37
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37

Description

Husqvarna Yth2048 A

Model Year - 2001-02

Chassis & Enclosures - Parts Diagram
