Husqvarna Yth190 - Chassis & Enclosures

Husqvarna Yth190 - Chassis & Enclosures

Description

Husqvarna Yth190

Model Year - 1995-03

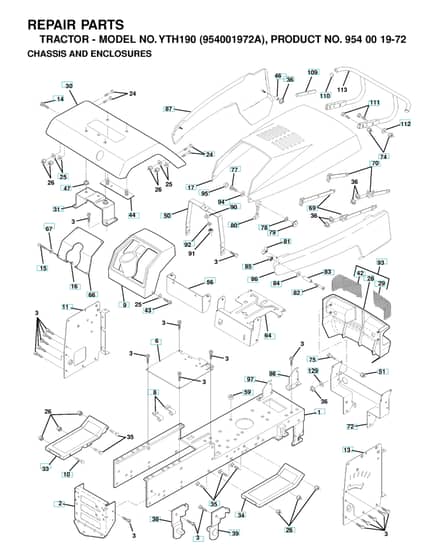

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.92 £0.77
	14		HV817 49 06-08 Available to backorder	Screw		£5.32 £4.43
	24		HV874 78 06-16 Available to backorder	Bolt		£6.34 £5.28
	38		HV532 13 98-86 Available to backorder	Bracket		£8.36 £6.97
	44		HV532 14 06-75 Available to backorder	Strap		£8.40 £7.00
	74		HV596 32 26-01 Available to backorder	Nut		£3.79 £3.16
	78		HV810 07 10-00 Available to backorder	Washer		£2.58 £2.15
	80		HV532 10 98-08 Available to backorder	Latch		£8.82 £7.35
	83		HV532 00 72-06 Available to backorder	Spacer		£2.72 £2.27
	92		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03

Description

Husqvarna Yth190

Model Year - 1995-03

Chassis & Enclosures - Parts Diagram
