Husqvarna Yth18K46 - Engine

Name: Husqvarna Yth18K46 - Engine
SKU: yth18k46_engine-group
Price: 0.64 GBP
Availability: InStock

Part No. yth18k46_engine-group

Description

Husqvarna Yth18K46

Model Year -

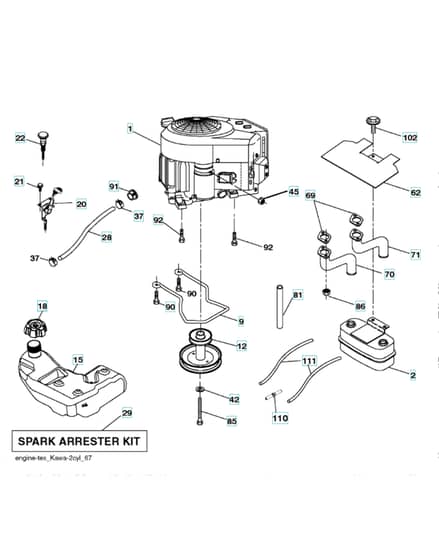

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Available to backorder	Muffler	£129.84 £108.20
9	HV596 50 15-02 Available to backorder	Keeper	£15.40 £12.83
18	HV585 12 48-01 Available to backorder	Fuel Cap Assyfits 2.75" Filler Neck	£30.76 £25.63
20	HV532 41 21-65 Available to backorder	Cable	£54.48 £45.40
21	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
42	HV596 23 89-01 Available to backorder	Washer	£3.12 £2.60
62	HV532 43 40-17 Available to backorder	Shield	£22.44 £18.70
69	HV532 18 59-09 Available to backorder	Gasket	£7.51 £6.26
70	HV583 95 57-01 Available to backorder	Tube	£36.32 £30.27
71	HV583 95 56-01 Available to backorder	Tube	£36.98 £30.82
85	HV501 60 65-01 Available to backorder	Bolt	£2.56 £2.13
90	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
91	HV532 18 74-95 Available to backorder	Bushing	£8.98 £7.48
92	HV817 12 06-16 Available to backorder	Screw	£5.24 £4.37
