Husqvarna Yth1842 Xp - Chassis & Enclosures

Husqvarna Yth1842 Xp - Chassis & Enclosures

Part No. yth1842_xp_2005_05_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth1842 Xp - Chassis & Enclosures

Husqvarna Yth1842 Xp - Chassis & Enclosures

Description

Husqvarna Yth1842 Xp

Model Year - 2005-05

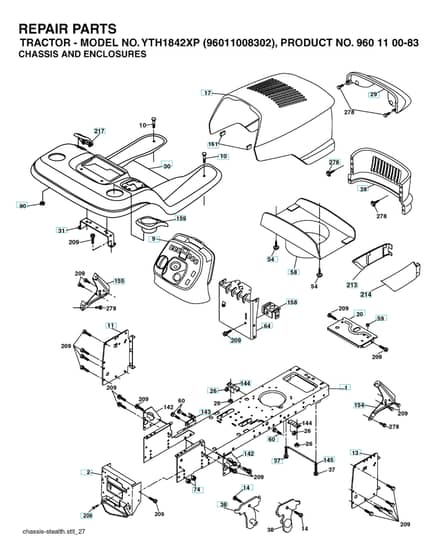

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV532 17 46-19 Available to backorder	Frame		£370.08 £308.40
	2		HV532 17 65-54 Available to backorder	Plate		£42.80 £35.67
	13		HV532 17 82-98 Available to backorder	Panel		£37.69 £31.41
	14		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	28		HV532 18 28-73 Available to backorder	Cala*Rpl.Par 532175289418		£87.36 £72.80
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	38		HV532 17 57-10 Available to backorder	Bracket		£17.94 £14.95
	54		HV532 16 14-64 Available to backorder	Screw		£1.20 £1.00
	59		HV532 18 74-95 Available to backorder	Bushing		£8.98 £7.48
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	142		HV532 17 57-02 Available to backorder	Plate		£6.23 £5.19
	143		HV532 18 66-89 Available to backorder	Bracket		£10.26 £8.55
	206		HV532 17 01-65 Available to backorder	Bolt		£5.24 £4.37
	209		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82

Description

Husqvarna Yth1842 Xp

Model Year - 2005-05

Chassis & Enclosures - Parts Diagram
