Husqvarna Yth180 Xp

Model Year - 2006-01

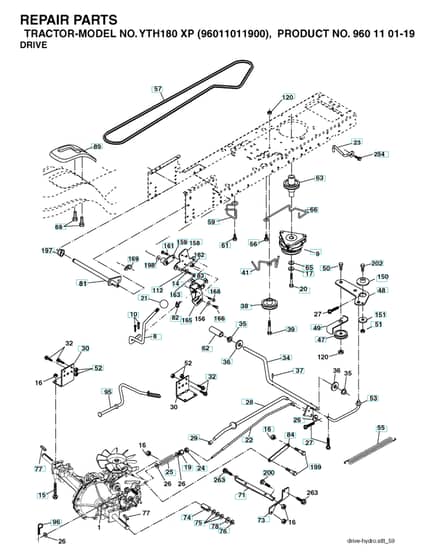

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 16 60-02 Available to backorder	Washer	£4.92 £4.10
8	HV532 19 25-02 Available to backorder	Rod Shift	£36.08 £30.07
10	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
14	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
15	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
16	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
17	HV532 12 61-97 Available to backorder	Washer	£14.88 £12.40
20	HV532 17 39-37 Available to backorder	Bolt	£9.76 £8.13
21	HV532 12 12-74 Available to backorder	Knob	£11.00 £9.17
23	HV532 19 07-36 Available to backorder	Bracket	£10.36 £8.63
28	HV532 17 57-65 Available to backorder	Shaft	£13.12 £10.93
29	HV532 07 16-73 Available to backorder	Cover	£3.66 £3.05
30	HV532 16 95-92 Available to backorder	Bracket	£24.58 £20.48
34	HV532 17 55-78 Available to backorder	Shaft	£51.08 £42.57
35	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
36	HV819 21 16-16 Available to backorder	Washer	£2.84 £2.37
38	HV532 17 91-14 Available to backorder	Pulley	£44.62 £37.18
39	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
48	HV532 15 44-07 Available to backorder	Guide	£8.52 £7.10
49	HV532 12 32-05 Available to backorder	Belt Guide	£7.12 £5.93
51	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
55	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
56	HV817 06 06-20 Available to backorder	Screw	£7.12 £5.93
57	HV532 14 02-94 In stock	Belt	£59.02 £49.18
59	HV532 16 96-91 Available to backorder	Belt Guide	£7.20 £6.00
63	HV532 17 46-07 Available to backorder	Pulley	£41.76 £34.80
65	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
66	HV531 15 10-01 Available to backorder	Tensioner	£12.23 £10.19
69	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
71	HV532 16 91-83 Available to backorder	Rod	£23.14 £19.28
74	HV532 13 70-57 Available to backorder	Spacer	£9.52 £7.93
75	HV532 12 17-49 In stock	Washer	£3.28 £2.73
76	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
77	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
78	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
82	HV532 16 57-11 Available to backorder	Spring	£4.78 £3.98
95	HV532 17 02-01 Available to backorder	Control	£15.72 £13.10
158	HV532 16 55-89 Available to backorder	Bracket	£8.58 £7.15
162	HV873 68 04-00 Available to backorder	Nut	£2.98 £2.48
166	HV817 49 05-10 Available to backorder	Screw	£4.02 £3.35
168	HV532 16 54-92 Available to backorder	Bolt	£5.04 £4.20
197	HV532 16 96-13 Available to backorder	Sleeve	£5.68 £4.73
198	HV532 16 95-93 Available to backorder	Washer	£2.34 £1.95
199	HV532 16 96-12 Available to backorder	Screw	£6.08 £5.07
200	HV872 14 05-08 Available to backorder	Bolt	£4.54 £3.78
202	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
254	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
263	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
