Husqvarna Yth160 - Mower Deck & Cutting Deck

Description

Husqvarna Yth160

Model Year - 1998-07

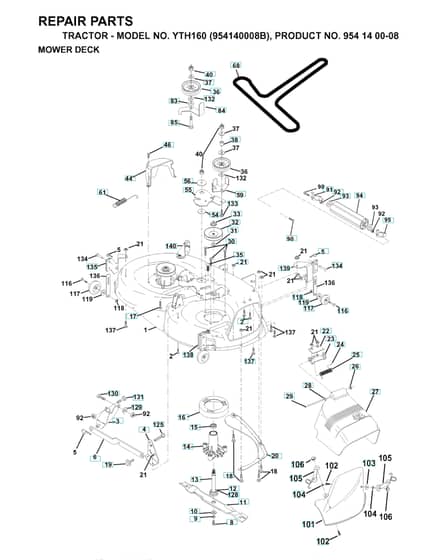

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
8	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 13 41-49 In stock	Ride On Blade	£28.33 £23.61
12	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
17	HV872 11 06-18 Available to backorder	Bolt	£6.48 £5.40
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
20	HV531 16 70-01 Available to backorder	Rail	£28.06 £23.38
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 13 09-68 Available to backorder	Deflector	£53.74 £44.78
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
35	HV532 13 38-35 Available to backorder	Xmas Tree Fastner	£1.28 £1.07
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
44	HV532 14 00-88 Available to backorder	Guard	£37.81 £31.51
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
61	HV532 13 19-50 Available to backorder	Spring	£15.38 £12.82
68	HV532 14 49-59 Available to backorder	Belt	£65.64 £54.70
83	HV532 12 09-58 Available to backorder	Washer	£13.69 £11.41
84	HV531 15 09-01 Available to backorder	Tensioner	£5.98 £4.98
90	HV874 76 06-16 Available to backorder	Bolt	£2.09 £1.74
94	HV532 13 22-64 Available to backorder	Roller	£18.38 £15.32
103	HV819 06 12-16 Available to backorder	Washer	£2.83 £2.36
104	HV810 07 10-00 Available to backorder	Washer	£2.56 £2.13
105	HV597 00 06-01 In stock	Latch	£9.79 £8.16
117	HV532 13 39-57 Available to backorder	Wheel	£25.87 £21.56
128	HV532 15 33-90 Available to backorder	Gasket	£4.63 £3.86
130	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
133	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
137	HV596 03 94-01 Available to backorder	Bolt	£1.03 £0.86
