Husqvarna Yth160 - Drive

Name: Husqvarna Yth160 - Drive
SKU: yth160_1998_07_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yth160

Model Year - 1998-07

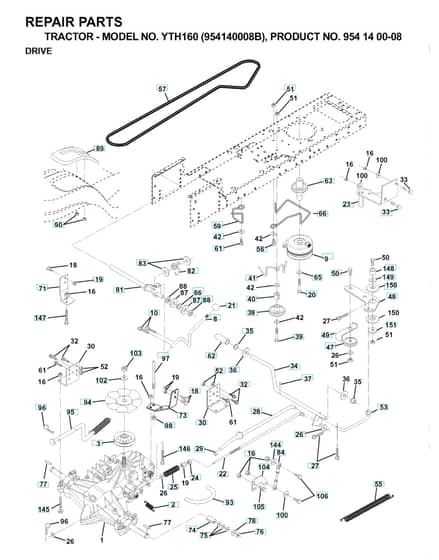

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 24-31 Available to backorder	Spring	£4.54 £3.78
3	HV532 14 39-95 Available to backorder	Pulley	£52.40 £43.67
9	HV532 14 50-28 Available to backorder	Clutch	£357.60 £298.00
10	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
16	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
18	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
21	HV532 14 08-45 Available to backorder	Knob	£21.36 £17.80
29	HV532 07 16-73 Available to backorder	Cover	£3.66 £3.05
30	HV532 13 08-07 Available to backorder	Bracket	£28.46 £23.72
33	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
35	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
36	HV819 21 16-16 Available to backorder	Washer	£2.84 £2.37
38	HV532 12 36-74 Available to backorder	Pulley	£48.94 £40.78
40	HV532 12 49-65 Available to backorder	Spacer	£5.56 £4.63
48	HV532 15 44-07 Available to backorder	Guide	£8.52 £7.10
49	HV532 12 32-05 Available to backorder	Belt Guide	£7.12 £5.93
51	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
55	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
65	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
75	HV532 12 17-49 In stock	Washer	£3.28 £2.73
76	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
77	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
78	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
82	HV532 12 37-82 Available to backorder	Torsion Spring	£4.60 £3.83
86	HV532 15 47-80 Available to backorder	Bushing	£29.76 £24.80
94	HV532 14 04-62 Available to backorder	Fan	£13.58 £11.32
98	HV873 51 06-00 Available to backorder	Nut	£3.24 £2.70
145	HV874 49 05-40 Available to backorder	Bolt	£7.12 £5.93
