Husqvarna Yth155 - Mower Deck & Cutting Deck

Description

Husqvarna Yth155

Model Year - 2002-06

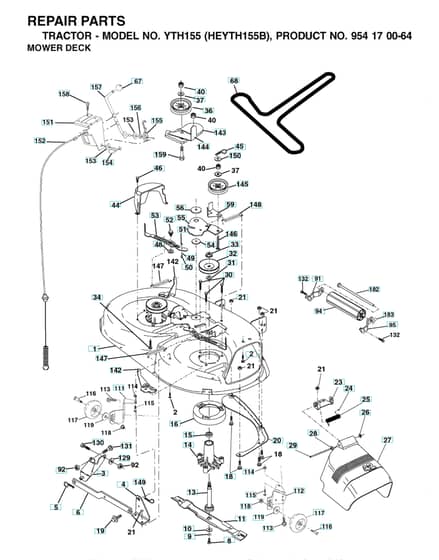

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
6	HV532 17 80-24 Available to backorder	Lever	£23.08 £19.23
8	HV532 85 08-57 Available to backorder	Bolt	£6.70 £5.58
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.69 £11.41
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
20	HV531 16 70-01 Available to backorder	Rail	£28.06 £23.38
23	HV532 17 75-63 In stock	Bracket	£12.19 £10.16
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
34	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
44	HV532 14 00-88 Available to backorder	Guard	£37.81 £31.51
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
49	HV532 17 42-84 Available to backorder	Roller	£7.06 £5.88
51	HV532 06 91-80 Available to backorder	Nut	£1.79 £1.49
52	HV532 13 98-88 Available to backorder	Bolt	£5.23 £4.36
55	HV531 16 66-01-1 Available to backorder	Lever	£18.60 £15.50
56	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
67	HV532 10 69-32 Available to backorder	Knob	£9.08 £7.57
94	HV532 13 22-64 Available to backorder	Roller	£18.38 £15.32
95	HV532 18 05-33 Available to backorder	Bracket	£10.26 £8.55
115	HV596 03 94-01 Available to backorder	Bolt	£1.03 £0.86
117	HV532 16 57-46 Available to backorder	Wheel	£14.32 £11.93
130	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
142	HV532 16 58-90 Available to backorder	Bracket	£12.18 £10.15
146	HV532 17 19-77 Available to backorder	Shaft	£16.38 £13.65
147	HV532 17 97-48 Available to backorder	Spring	£6.26 £5.22
148	HV532 16 90-22 Available to backorder	Spring	£5.09 £4.24
151	HV532 16 96-70 Available to backorder	Bracket	£19.21 £16.01
152	HV532 18 15-55 Available to backorder	Cable	£49.60 £41.33
154	HV532 16 96-75 Available to backorder	Pin	£5.34 £4.45
155	HV548 92 72-01 In stock	Spring	£19.57 £16.31
156	HV532 16 96-72 Available to backorder	Spacer	£2.30 £1.92
157	HV532 16 96-69 Available to backorder	Control	£42.17 £35.14
159	HV596 98 75-01 Available to backorder	Bolt	£7.06 £5.88
182	HV532 17 91-26 Available to backorder	Pin Retaining Screw	£26.39 £21.99
