Husqvarna Yth130 - Mower Deck & Cutting Deck

Name: Husqvarna Yth130 - Mower Deck & Cutting Deck
SKU: yth130_2001_09_mower_deck_cutting_deck-group
Price: 1.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth130 - Mower Deck & Cutting Deck

Description

Husqvarna Yth130

Model Year - 2001-09

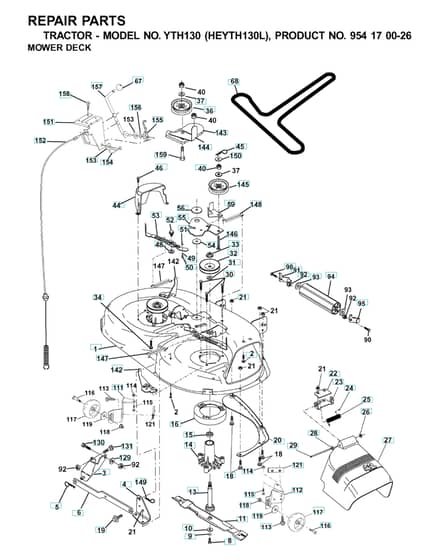

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 17 43-57 Out of stock	Palier De Lame Complet	£117.24 £97.70
2	HV595 90 16-01 Out of stock	Bolt	£4.30 £3.58
3	HV532 13 80-17 Out of stock	Bracke	£19.28 £16.07
8	HV532 85 08-57 Out of stock	Bolt	£6.20 £5.17
10	HV532 14 02-96 Out of stock	Washer	£8.09 £6.74
14	HV532 17 43-58 Out of stock	Mandrel	£63.48 £52.90
15	HV532 11 04-85 Out of stock	Bearing	£8.52 £7.10
16	HV531 16 77-01 Out of stock	Stripper. Mandrel.Black	£12.86 £10.72
18	HV596 13 64-01 Out of stock	Bolt	£3.26 £2.72
19	HV532 13 28-27 Out of stock	Spec. Bolt	£6.85 £5.71
20	HV532 15 97-70 Out of stock	Rail	£26.74 £22.28
24	HV532 10 53-04 Out of stock	Hub Cap	£3.35 £2.79
25	HV532 12 37-13 Out of stock	Spring	£11.20 £9.33
26	HV532 11 04-52 Out of stock	Nut	£2.16 £1.80
29	HV532 13 14-91 Out of stock	Shaft	£14.76 £12.30
34	HV872 11 06-14 Out of stock	Bolt	£6.85 £5.71
40	HV596 32 26-01 Out of stock	Nut	£3.24 £2.70
44	HV532 14 00-88 Out of stock	Guard	£36.68 £30.57
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
49	HV532 17 42-84 Out of stock	Roller	£6.85 £5.71
51	HV532 06 91-80 Out of stock	Nut	£1.74 £1.45
52	HV532 13 98-88 In stock	Bolt	£5.09 £4.24
55	HV531 16 66-01-1 Out of stock	Lever	£18.60 £15.50
56	HV532 16 57-23 In stock	Spacer	£11.81 £9.84
67	HV532 10 69-32 Out of stock	Knob	£9.95 £8.29
68	HV532 14 49-59 Out of stock	Belt	£64.20 £53.50
91	HV532 17 57-47 Out of stock	Bracket	£12.43 £10.36
94	HV532 13 22-64 Out of stock	Roller	£17.83 £14.86
95	HV532 17 57-46 Out of stock	Bracket	£12.43 £10.36
117	HV532 16 57-46 Out of stock	Wheel	£13.88 £11.57
130	HV874 78 06-16 Out of stock	Bolt	£6.11 £5.09
142	HV532 16 58-90 Out of stock	Bracket	£11.81 £9.84
146	HV532 17 19-77 Out of stock	Shaft	£15.89 £13.24
148	HV532 16 90-22 Out of stock	Spring	£5.12 £4.27
149	HV532 16 58-98 Out of stock	Spring	£3.72 £3.10
151	HV532 16 96-70 Out of stock	Bracket	£18.64 £15.53
154	HV532 16 96-75 Out of stock	Pin	£4.86 £4.05
155	HV532 16 96-71 In stock	Spring	£3.72 £3.10
156	HV532 16 96-72 Out of stock	Spacer	£2.23 £1.86
157	HV532 16 96-69 Out of stock	Control	£40.91 £34.09
159	HV596 98 75-01 Out of stock	Bolt	£7.19 £5.99
