Husqvarna Yta1946 - Drive

Name: Husqvarna Yta1946 - Drive
SKU: yta1946_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yta1946

Model Year -

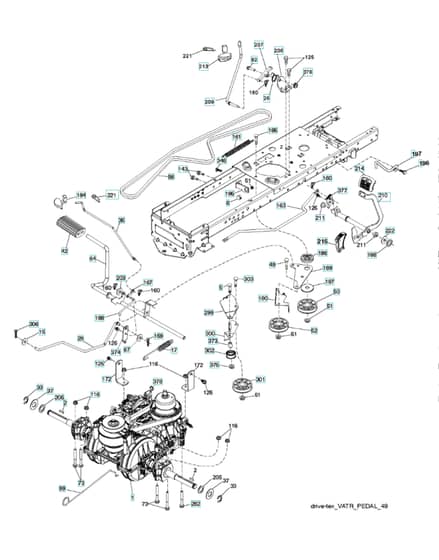

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
17	HV501 48 71-01 Available to backorder	Spring	£7.76 £6.47
26	HV532 19 96-79 Available to backorder	Spring	£3.76 £3.13
29	HV584 82 31-01 Available to backorder	Rod	£12.28 £10.23
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV583 86 45-01 Available to backorder	Rod	£20.72 £17.27
37	HV532 18 89-67 In stock	Washer	£5.04 £4.20
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
64	HV532 44 83-53 Available to backorder	Shaft	£75.04 £62.53
73	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
99	HV532 43 59-35 Available to backorder	Rod	£9.06 £7.55
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
143	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
163	HV583 97 13-01 Available to backorder	Rod	£18.40 £15.33
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
167	HV532 40 52-57 Available to backorder	Latch	£5.82 £4.85
172	HV583 97 42-01 Available to backorder	Strap	£8.40 £7.00
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV582 21 70-01 Available to backorder	Link	£10.36 £8.63
189	HV532 19 43-17 Available to backorder	Plate	£14.88 £12.40
195	HV581 50 46-01 Available to backorder	Bracket	£6.20 £5.17
196	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
197	HV585 65 86-01 Available to backorder	Clutch	£12.28 £10.23
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
206	HV532 44 85-96 Available to backorder	Bracket	£10.36 £8.63
209	HV532 19 95-92 Available to backorder	Rod	£14.22 £11.85
210	HV588 92 10-01 Available to backorder	Pedal	£38.82 £32.35
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
213	HV532 40 31-19 Available to backorder	Control	£14.22 £11.85
215	HV532 40 17-23 Available to backorder	Pedal	£36.22 £30.18
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
299	HV532 41 56-83 Available to backorder	Bracket	£13.96 £11.63
300	HV532 41 56-81 Available to backorder	Idler	£9.06 £7.55
301	HV532 41 56-80 Available to backorder	Idler	£41.76 £34.80
302	HV581 42 05-01 Available to backorder	Pulley	£28.06 £23.38
303	HV872 11 06-18 Available to backorder	Bolt	£7.76 £6.47
306	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
373	HV581 46 18-01 Available to backorder	Spacer	£4.54 £3.78
374	HV581 47 52-01 Available to backorder	Arm	£7.76 £6.47
375	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
376	HV532 42 65-89 Available to backorder	Nut	£4.78 £3.98
378	HV584 28 77-01 Available to backorder	Nut	£1.56 £1.30
