Husqvarna Yt48Xls - Mower Deck & Cutting Deck

Name: Husqvarna Yt48Xls - Mower Deck & Cutting Deck
SKU: yt48xls_mower_deck_cutting_deck-group
Price: 0.94 GBP
Availability: InStock

Description

Husqvarna Yt48Xls

Model Year -

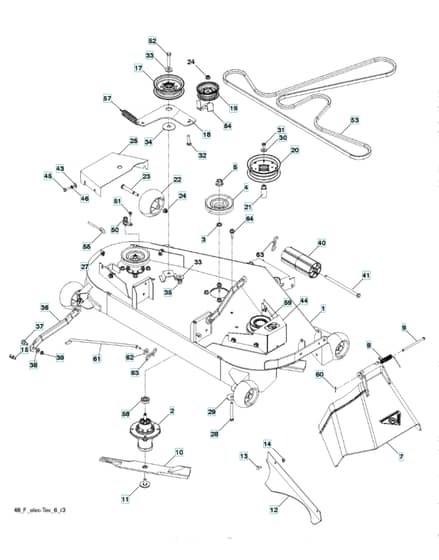

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
3	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
4	HV532 17 43-75	Pulley	Out of stock	£38.03 £31.69
8	HV539 11 07-35	Spring	Out of stock	£9.65 £8.04
10	HV539 11 34-25	Ride On Blade	Out of stock	£26.11 £21.76
11	HV532 19 30-03	Screw	In stock	£13.56 £11.30
13	HV596 03 94-01	Bolt	Out of stock	£2.81 £2.34
14	HV596 04 05-01	Lock Nut	Out of stock	£2.06 £1.72
15	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
17	HV532 19 61-04	Pulley	Out of stock	£112.14 £93.45
19	HV532 17 79-68	Pulley	Out of stock	£58.08 £48.40
20	HV539 13 27-28	Pulley	Out of stock	£62.83 £52.36
22	HV532 13 39-57	Wheel	Out of stock	£25.09 £20.91
28	HV539 10 82-71	Bolt	Out of stock	£8.15 £6.79
29	HV539 10 65-04	Washer	Out of stock	£6.25 £5.21
30	HV819 14 16-14	Washer	Out of stock	£1.13 £0.94
31	HV539 97 69-79	Nut	Out of stock	£2.84 £2.37
34	HV532 17 85-15	Washer	In stock	£8.71 £7.26
35	HV873 90 07-00	Nut	Out of stock	£4.86 £4.05
36	HV532 19 51-85	Arm	Out of stock	£32.32 £26.93
39	HV539 20 02-82	Nut	Out of stock	£1.93 £1.61
40	HV532 17 60-66	Roller	Out of stock	£15.19 £12.66
45	HV874 78 05-16	Bolt	Out of stock	£3.52 £2.93
46	HV539 99 01-87	Washer	Out of stock	£2.52 £2.10
50	HV532 41 55-98	Hose Coupling	Out of stock	£5.16 £4.30
53	HV574 84 56-02	Belt	Out of stock	£102.48 £85.40
55	HV539 11 55-74	Eye Bolt	Out of stock	£9.25 £7.71
58	HV532 11 04-85	Bearing	Out of stock	£8.52 £7.10
60	HV532 16 94-84	Pin	Out of stock	£4.00 £3.33
61	HV532 40 48-51	Rod	Out of stock	£20.52 £17.10
63	HV532 19 42-08	Pin	Out of stock	£1.67 £1.39
64	HV584 95 39-01	Bolt	Out of stock	£5.60 £4.67
