Husqvarna Yt42Dxls - Engine

Name: Husqvarna Yt42Dxls - Engine
SKU: yt42dxls_engine-group
Price: 0.64 GBP
Availability: InStock

Part No. yt42dxls_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yt42Dxls

Model Year -

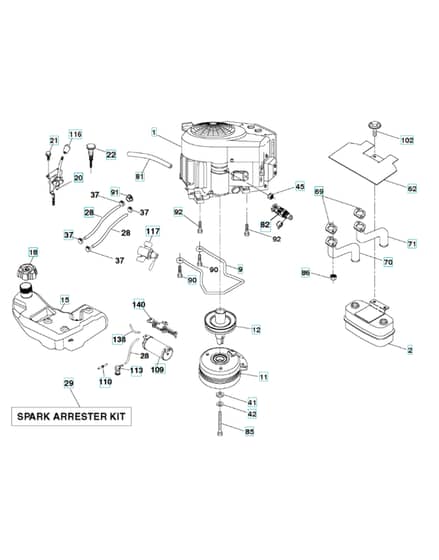

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Available to backorder	Muffler	£129.84 £108.20
9	HV596 50 15-02 Available to backorder	Keeper	£15.40 £12.83
18	HV584 24 87-01 Available to backorder	Capfits 2.75" Filler Neck. For 96048008400. 2014	£30.76 £25.63
18	HV585 12 48-01 Available to backorder	Fuel Cap Assyfits 2.75" Filler Neck. For 2017. 2016. 2015 Models & 96043020300. 96043020400	£30.76 £25.63
20	HV532 42 43-41 Available to backorder	Control Throttlefor 96043026200. 2017-11 & 96043026300. 2017-09 & 2016 Models	£25.00 £20.83
21	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
22	HV532 19 15-96 Available to backorder	Comma*Rpl.Par 532187767428For 96043028100. 2017-11. 96043028000. 2017-11. 2015 Models. 96048008400. & 96043020300	£37.81 £31.51
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
41	HV532 12 61-97 Available to backorder	Washer	£14.74 £12.28
42	HV596 23 89-01 Available to backorder	Washer	£3.12 £2.60
62	HV532 43 40-17 Available to backorder	Shield	£22.44 £18.70
70	HV583 95 56-01 Available to backorder	Tubefor 96043026200. 2017-11 & 96043026300. 2017-09. All 2016 Models. 96043020301. 2015-06 & 96043020400. 2014	£36.98 £30.82
71	HV583 95 57-01 Available to backorder	Tubefor 96043028100. 2017-11. 96043028000. 2017-11. 96043020401. 2015-07. 96043020301. 2015-06 & 96048008400. 2014	£36.32 £30.27
82	HV532 42 82-87 Available to backorder	Plugfor 2015 & 2014 Models	£12.00 £10.00
85	HV501 60 67-01 Available to backorder	Bolt	£3.35 £2.79
86	HV532 18 43-62 Available to backorder	Nut	£2.77 £2.31
90	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
91	HV532 18 74-95 Available to backorder	Bushing	£8.98 £7.48
92	HV817 12 06-16 Available to backorder	Screw	£5.24 £4.37
