Husqvarna Yt42Dxl - Drive

Name: Husqvarna Yt42Dxl - Drive
SKU: yt42dxl_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. yt42dxl_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yt42Dxl

Model Year -

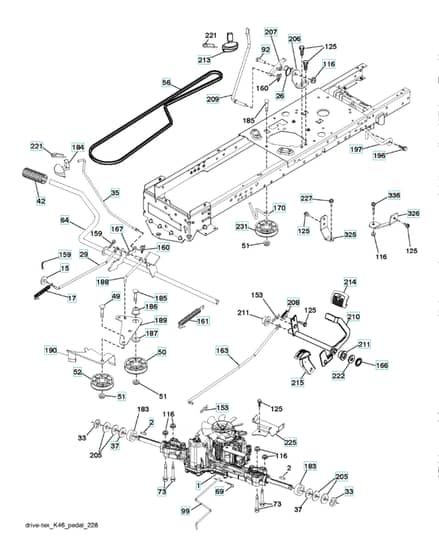

Drive - Parts Diagram

	Part No.	Details
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
17	HV532 41 36-78 Available to backorder	Srping.Brake.K46.GreenSubs/2	£12.82 £10.68
26	HV532 19 96-79 Available to backorder	Spring	£3.73 £3.11
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
37	HV532 18 89-67 In stock	Washer	£4.33 £3.61
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV592 85 52-10 Available to backorder	Belt	£62.04 £51.70
73	HV874 49 05-40 Available to backorder	Bolt	£7.06 £5.88
99	HV582 40 45-01 Available to backorder	Rod	£10.06 £8.38
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
163	HV532 44 82-75 Available to backorder	Control	£67.56 £56.30
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
170	HV532 41 34-30 Available to backorder	Belt Guide	£9.62 £8.02
183	HV532 13 70-57 Available to backorder	Spacer	£9.79 £8.16
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV582 21 70-01 Available to backorder	Link	£10.72 £8.93
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
196	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
206	HV532 44 85-96 Available to backorder	Bracket	£10.26 £8.55
207	HV587 03 14-01 Available to backorder	Latch	£12.18 £10.15
208	HV532 19 78-69 Available to backorder	Support	£10.90 £9.08
210	HV532 40 09-80 Available to backorder	Pedal Arm	£35.88 £29.90
211	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
213	HV532 40 31-19 Available to backorder	Control	£14.10 £11.75
215	HV586 60 65-02 Available to backorder	Pedal	£35.88 £29.90
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
222	HV879 21 20-10 Available to backorder	Washer	£5.63 £4.69
225	HV532 40 33-19 Available to backorder	Belt Guide	£15.38 £12.82
231	HV532 40 72-87 Available to backorder	Pulley	£34.66 £28.88
326	HV586 00 11-02 Available to backorder	Bracket	£17.94 £14.95
336	HV587 25 96-01 Available to backorder	Bolt	£6.29 £5.24
