Husqvarna Yt1942 T - Drive

Name: Husqvarna Yt1942 T - Drive
SKU: yt1942_t_2006_05_drive-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yt1942 T

Model Year - 2006-05

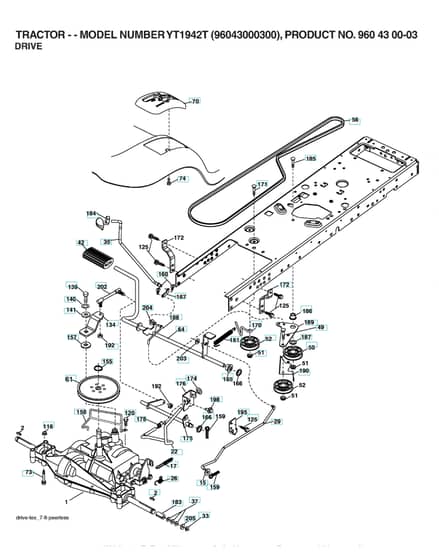

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
17	HV532 19 72-97 Available to backorder	Spring	£12.28 £10.23
22	HV532 19 76-60 Available to backorder	Rod	£58.66 £48.88
26	HV532 19 74-55 Available to backorder	Spring	£4.14 £3.45
29	HV532 19 72-67 Available to backorder	Rod	£27.82 £23.18
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
37	HV532 12 17-49 In stock	Washer	£3.28 £2.73
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
56	HV532 19 43-46 Available to backorder	Belt	£62.52 £52.10
61	HV532 12 36-66 Available to backorder	Pulley	£92.84 £77.37
64	HV532 19 62-00 Available to backorder	Shaft	£104.80 £87.33
73	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
74	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
140	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
155	HV812 00 00-28 Available to backorder	Clip	£0.64 £0.53
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
165	HV532 19 62-12 Available to backorder	Bushing	£10.36 £8.63
166	HV532 19 72-90 Available to backorder	Nut	£1.82 £1.52
171	HV872 11 06-16 Available to backorder	Bolt	£7.12 £5.93
174	HV532 19 72-89 Available to backorder	Nut	£2.06 £1.72
183	HV532 13 70-57 Available to backorder	Spacer	£9.52 £7.93
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV532 19 43-23 Available to backorder	Link	£7.86 £6.55
189	HV532 19 43-17 Available to backorder	Plate	£14.88 £12.40
204	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
