Husqvarna WS 8 - 967971301 - Housing

Part No. WS_8_967971301_XI_343004_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna WS 8 - 967971301 - Housing

Husqvarna WS 8 - 967971301 - Housing

Description

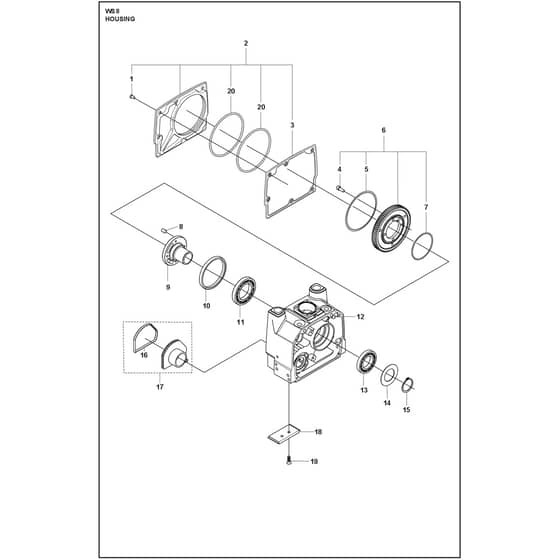

Husqvarna WS 8 - 967971301 - Housing - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV580 74 63-01 Available to backorder	Screw		£3.00 £2.50
	2		HV547 75 83-01 Available to backorder	Cover Assy		£263.76 £219.80
	3		HV589 80 32-01 Available to backorder	Gasket		£41.71 £34.76
	4		HV584 23 44-01 Available to backorder	Screw		£1.34 £1.12
	5		HV576 24 98-01 Available to backorder	O-Ring		£2.24 £1.87
	6		HV547 75 84-01 Available to backorder	Gear Wheel Kit		£342.84 £285.70
	7		HV576 24 97-01 Available to backorder	O-Ring		£3.41 £2.84
	8		HV576 23 40-01 Available to backorder	Pen		£2.99 £2.49
	9		HV589 74 01-01 Available to backorder	Shaft		£263.04 £219.20
	10		HV576 23 38-01 Available to backorder	Seal		£19.78 £16.48
	11		HV576 23 39-01 Available to backorder	Bearing		£30.48 £25.40
	12		HV596 29 55-01 Available to backorder	Housing		£1,130.40 £942.00
	13		HV531 11 94-43 Available to backorder	Bearing		£23.81 £19.84
	14		HV577 77 91-01 Available to backorder	Washer		£12.20 £10.17
	15		HV735 31 33-00 Available to backorder	Circlip		£1.15 £0.96
	16		HV583 96 48-01 Available to backorder	Sealing Strip		£22.12 £18.43
	17		HV583 96 46-01 Available to backorder	Plug		£98.64 £82.20
	18		HV577 91 95-01 Available to backorder	Plate		£37.62 £31.35
	19		HV725 63 70-51 Available to backorder	Screw Ihcsfm		£1.79 £1.49
	20		HV589 00 62-01 Available to backorder	O-Ring		£3.00 £2.50

Description

Husqvarna WS 8 - 967971301 - Housing - Parts Diagram
