Husqvarna WS 482 HF - 967646702 - Pivoting Arm

Name: Husqvarna WS 482 HF - 967646702 - Pivoting Arm
SKU: WS_482_HF_967646702_MB_361292-group
Price: 0.57 GBP
Availability: InStock

Part No. WS_482_HF_967646702_MB_361292-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna WS 482 HF - 967646702 - Pivoting Arm

Description

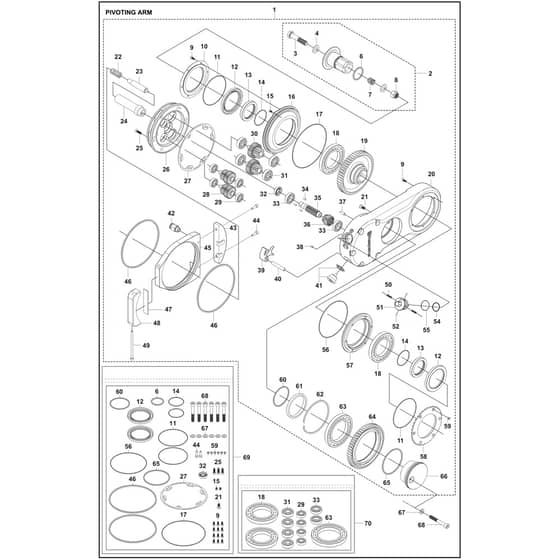

Husqvarna WS 482 HF - 967646702 - Pivoting Arm - Parts Diagram

	Part No.	Details
1	HV529 81 54-01 Available to backorder	Pivoting Arm (Incl. 2 - 66)	£15,087.60 £12,573.00
2	HV580 67 79-01 Available to backorder	Shaft Assy (Incl. 3 - 8)	£162.72 £135.60
3	HV725 25 44-91 Available to backorder	Screw Ehhm	£6.70 £5.58
4	HV531 11 91-83 Available to backorder	Washer	£3.43 £2.86
6	HV531 11 92-74 Available to backorder	O-Ring	£2.54 £2.12
7	HV531 11 93-64 Available to backorder	Spring	£5.38 £4.48
8	HV732 25 22-71 Available to backorder	Hexagon Locking Nut	£3.41 £2.84
9	HV725 52 89-01 Available to backorder	Screw Ihscm	£0.68 £0.57
10	HV529 28 11-01 Available to backorder	Rear Cover	£145.20 £121.00
11	HV574 45 26-01 Available to backorder	O-Ring	£3.29 £2.74
12	HV574 45 22-01 Available to backorder	Seal	£15.19 £12.66
13	HV574 44 39-01 Available to backorder	Ring	£90.36 £75.30
14	HV574 45 24-01 Available to backorder	O-Ring	£4.75 £3.96
15	HV506 06 85-01 Available to backorder	Screw	£1.45 £1.21
16	HV529 28 12-01 Available to backorder	Bearing Cover	£25.30 £21.08
17	HV531 11 93-60 Available to backorder	O-Ring	£2.66 £2.22
18	HV574 45 21-01 Available to backorder	Bearing	£133.80 £111.50
19	HV529 28 20-02 Available to backorder	Gear Wheel	£349.27 £291.06
20	HV529 81 53-01 Available to backorder	Pivoting Arm	£2,343.60 £1,953.00
21	HV579 56 58-01 Available to backorder	Screw	£1.34 £1.12
22	HV505 40 03-08 Available to backorder	Spring	£9.83 £8.19
23	HV576 72 06-01 Available to backorder	Spacer	£9.52 £7.93
24	HV522 52 52-01 Available to backorder	Shaft Assy	£447.12 £372.60
25	HV725 53 29-01 Available to backorder	Screw Ihscm	£3.14 £2.62
26	HV522 52 61-01 Available to backorder	Gear	£73.44 £61.20
27	HV522 72 01-01 Available to backorder	Gasket	£14.27 £11.89
28	HV574 64 84-01 Available to backorder	Gear Assy	£295.06 £245.88
29	HV525 58 48-01 Available to backorder	Bearing	£13.39 £11.16
30	HV580 63 79-01 Available to backorder	Gear Assy	£297.12 £247.60
31	HV525 58 50-01 Available to backorder	Bearing	£38.82 £32.35
32	HV525 58 54-01 Available to backorder	Radial Seal	£7.91 £6.59
33	HV738 21 87-12 Available to backorder	Ball Bearing	£7.24 £6.03
34	HV574 45 18-01 Available to backorder	Pen	£1.34 £1.12
35	HV576 74 40-01 Available to backorder	Gear Wheel Shaft	£284.76 £237.30
37	HV720 13 51-50 Available to backorder	Parallel Pin	£1.67 £1.39
38	HV525 58 56-01 Available to backorder	Screw	£2.71 £2.26
39	HV529 82 09-01 Available to backorder	Gearshift Lever (From SN 20212403333 and PN 580418201.580723801)	£211.32 £176.10
39	HV522 52 59-01 Available to backorder	Gearshift Lever (Before SN 20212403333)	£157.92 £131.60
41	HV531 11 81-13 Available to backorder	Plug	£26.03 £21.69
42	HV531 11 81-20 Available to backorder	Coupling	£16.08 £13.40
44	HV725 53 31-01 Available to backorder	Screw Ihscm	£0.68 £0.57
45	HV574 64 85-01 Available to backorder	Cooling Air Conductor	£291.60 £243.00
46	HV574 45 58-01 Available to backorder	Radial Seal	£15.47 £12.89
47	HV575 49 15-01 Available to backorder	Damper	£4.63 £3.86
48	HV575 49 11-01 Available to backorder	Protector Bar	£106.80 £89.00
49	HV575 49 14-01 Available to backorder	Screw	£4.88 £4.07
50	HV525 58 52-01 Available to backorder	Spring	£4.18 £3.48
51	HV529 82 73-01 Available to backorder	Knob (From SN 20212403333 and PN 580418201.580723801)	£191.64 £159.70
52	HV531 11 93-66 Available to backorder	Ball	£2.44 £2.03
53	HV720 13 08-50 Available to backorder	Parallel Pin (Before SN 20212403333)	£1.51 £1.26
54	HV740 44 05-00 Available to backorder	O-Ring	£3.56 £2.97
55	HV525 58 53-01 Available to backorder	O-Ring	£3.73 £3.11
56	HV574 45 29-01 Available to backorder	O-Ring	£2.06 £1.72
57	HV529 28 14-01 Available to backorder	Bearing Cage	£13.69 £11.41
58	HV529 28 17-01 Available to backorder	Lid	£286.80 £239.00
59	HV725 62 87-01 Available to backorder	Screw Ihcsfm	£1.34 £1.12
60	HV574 45 30-01 Available to backorder	O-Ring	£3.86 £3.22
61	HV522 52 64-01 Available to backorder	Interlayer	£16.54 £13.78
62	HV574 45 32-01 Available to backorder	Snap Ring	£2.06 £1.72
63	HV574 45 20-01 Available to backorder	Bearing	£305.76 £254.80
64	HV522 52 62-02 Available to backorder	Driver	£322.56 £268.80
65	HV531 11 94-51 Available to backorder	O-Ring	£2.54 £2.12
66	HV522 52 63-01 Available to backorder	Manifold	£199.20 £166.00
67	HV734 11 63-01 In stock	Washer	£2.63 £2.19
68	HV725 54 64-01 Available to backorder	Screw Ihscm	£6.23 £5.19
