Description

Husqvarna WHF6123966947007

Model Year - - 2009-09

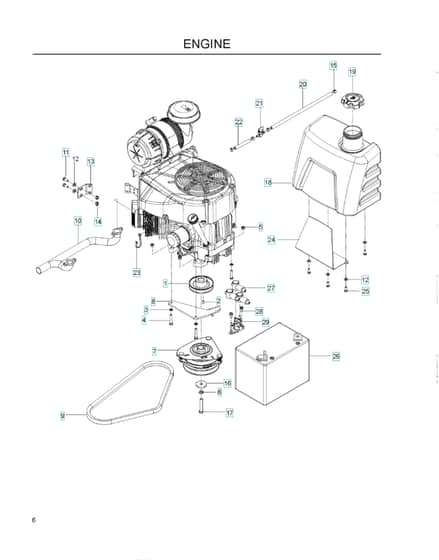

Engine Plate - Parts Diagram

Ref.		Img.	Part No.	Details
	4		HV539 99 06-69 Available to backorder	Screw		£6.29 £5.24
	5		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	6		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	11		HV539 99 02-06 Available to backorder	Screw		£3.59 £2.99
	12		HV539 99 01-88 Available to backorder	Washer		£2.44 £2.03
	14		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	15		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	16		HV539 10 65-04 Available to backorder	Washer		£6.40 £5.33
	22		HV505 29 67-01 Available to backorder	Seal		£14.98 £12.48
	25		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	27		HV539 10 27-59 Available to backorder	Insulator		£5.41 £4.51
	28		HV539 99 03-62 Available to backorder	Screw		£2.56 £2.13
	29		HV539 10 17-14 Available to backorder	Solenoid		£22.55 £18.79

Description

Husqvarna WHF6123966947007

Model Year - - 2009-09

Engine Plate - Parts Diagram
