Husqvarna WHF4215ETS - Frame

Husqvarna WHF4215ETS - Frame

Part No. whf4215ets_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna WHF4215ETS - Frame

Husqvarna WHF4215ETS - Frame

Description

Husqvarna WHF4215ETS

Model Year - -

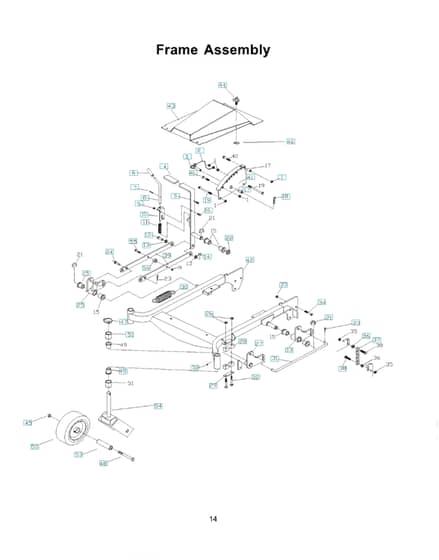

Frame - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	0		HV539 97 73-56 Available to backorder	Endcap. Notched		£5.18 £4.32
	1		HV539 10 33-00 Available to backorder	Nipple		£1.56 £1.30
	3		HV539 10 25-26 Available to backorder	Pin Retaining Screw		£12.18 £10.15
	10		HV539 10 35-34 Available to backorder	Bracket		£13.46 £11.22
	13		HV539 99 10-43 Available to backorder	Bushing		£0.94 £0.78
	16		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13
	26		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	28		HV539 10 48-08 Available to backorder	Support		£12.82 £10.68
	35		HV539 99 08-39 Available to backorder	Nut		£4.12 £3.43
	40		HV539 99 05-88 Available to backorder	Screw		£7.06 £5.88
	45		HV539 10 13-31 Available to backorder	Nut		£5.78 £4.82
	48		HV539 10 19-07 Available to backorder	Screw		£14.74 £12.28
	52		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	53		HV539 10 55-43 Available to backorder	Spacer		£22.44 £18.70

Description

Husqvarna WHF4215ETS

Model Year - -

Frame - Parts Diagram
