Husqvarna WHF3617966947008 - Engine Plate

Husqvarna WHF3617966947008 - Engine Plate

Part No. whf3617966947008_engine_plate-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna WHF3617966947008 - Engine Plate

Husqvarna WHF3617966947008 - Engine Plate

Description

Husqvarna WHF3617966947008

Model Year - - 2009-09

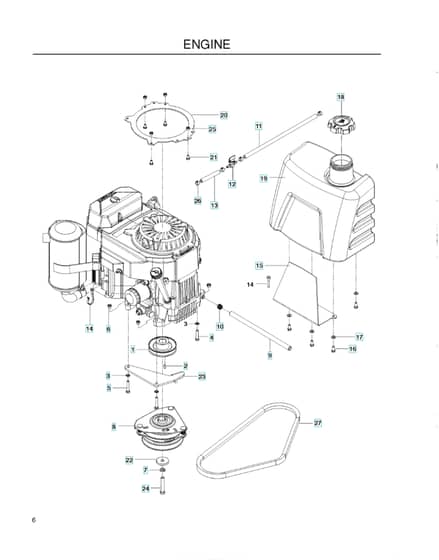

Engine Plate - Parts Diagram

Ref.		Img.	Part No.	Details
	4		HV539 97 69-35 Available to backorder	Capscrew		£1.13 £0.94
	5		HV539 99 06-69 Available to backorder	Screw		£6.29 £5.24
	6		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	7		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	16		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	17		HV539 99 01-88 Available to backorder	Washer		£2.44 £2.03
	22		HV539 10 65-04 Available to backorder	Washer		£6.40 £5.33
	25		HV539 97 69-78 Available to backorder	Nut		£2.05 £1.71
	26		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
