Husqvarna WH3616 - 2010-9 - Wheels & Tyres

Husqvarna WH3616 - 2010-9 - Wheels & Tyres

Description

Husqvarna WH3616

Model Year - 2010-9 - 966638601

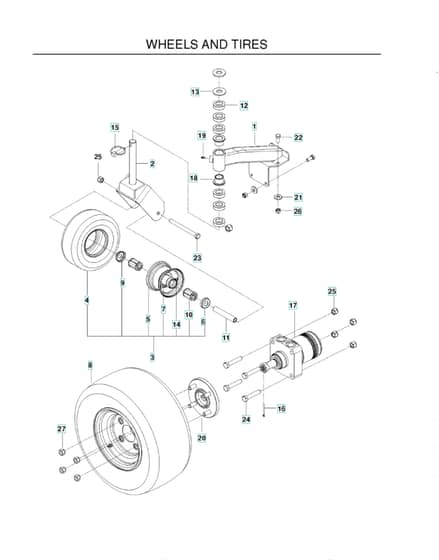

Wheels & Tyres - Parts Diagram

Ref.		Img.	Part No.	Details
	9		HV539 97 73-56 Available to backorder	Endcap. Notched		£5.18 £4.32
	10		HV539 97 73-53 Available to backorder	Roller Bearing		£24.30 £20.25
	11		HV539 10 18-72 Available to backorder	Spacer		£14.10 £11.75
	16		HV539 99 02-97 Available to backorder	Split Pin		£0.77 £0.64
	19		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	21		HV539 99 05-17 Available to backorder	Washer		£3.84 £3.20
	23		HV539 10 19-07 Available to backorder	Screw		£14.74 £12.28
	24		HV539 10 83-46 Available to backorder	Bolt		£9.62 £8.02
	25		HV539 10 13-31 Available to backorder	Nut		£5.78 £4.82
	26		HV539 97 69-79 Available to backorder	Nut		£2.94 £2.45
	27		HV539 10 11-73 Available to backorder	Nut		£5.78 £4.82

Description

Husqvarna WH3616

Model Year - 2010-9 - 966638601

Wheels & Tyres - Parts Diagram
