Husqvarna WG3613E - 2006-2 - Chassis & Frame

Husqvarna WG3613E - 2006-2 - Chassis & Frame

Part No. wg3613e_2006_2_chassis_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna WG3613E - 2006-2 - Chassis & Frame

Husqvarna WG3613E - 2006-2 - Chassis & Frame

Description

Husqvarna WG3613E

Model Year - 2006-2 - 968999365

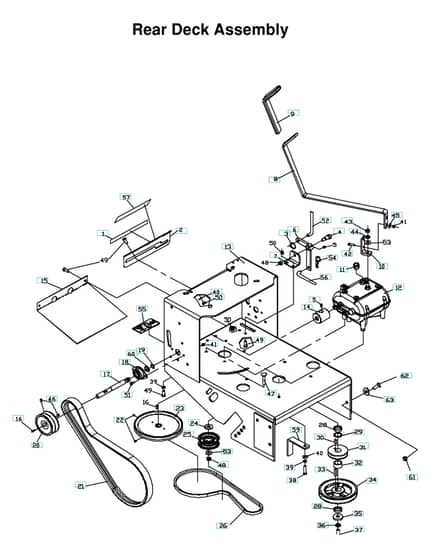

Chassis & Frame - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV539 99 10-43 Available to backorder	Bushing		£0.94 £0.78
	5		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	24		HV539 99 05-50 Available to backorder	Washer		£4.86 £4.05
	25		HV539 91 90-78 In stock	Pulley		£40.61 £33.84
	33		HV539 10 19-95 Available to backorder	Key		£4.74 £3.95
	35		HV539 10 65-04 Available to backorder	Washer		£6.40 £5.33
	36		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	37		HV539 10 01-41 Available to backorder	Screw		£7.70 £6.42
	39		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	43		HV539 99 01-55 Available to backorder	Nut		£2.69 £2.24
	44		HV539 99 01-18 Available to backorder	Washer		£2.54 £2.12
	46		HV539 97 69-56 Available to backorder	Screw		£1.56 £1.30
	48		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	49		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	50		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	53		HV539 99 05-17 Available to backorder	Washer		£3.84 £3.20
	55		HV539 10 57-44 Available to backorder	Decal		£7.70 £6.42
	61		HV539 99 08-39 Available to backorder	Nut		£4.12 £3.43
