Husqvarna WB 53S E

Model Year -

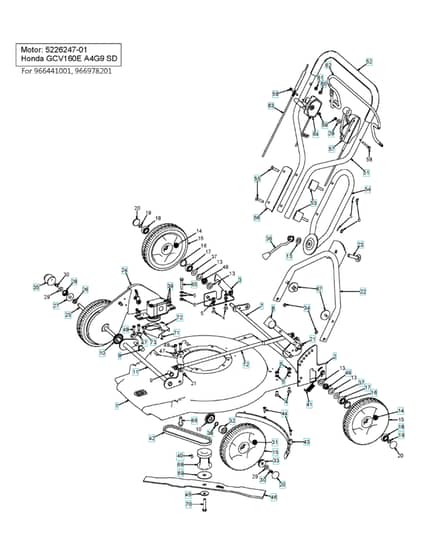

Frame & Engine - Parts Diagram

	Part No.	Details
2	HV503 24 90-02 Available to backorder	Index Plate Assy	£49.96 £41.63
3	HV503 26 58-02 Available to backorder	Handle Support Assy	£54.49 £45.41
7	HV503 25 81-01 Available to backorder	Rear Axle Assy	£44.11 £36.76
10	HV504 46 36-01 Available to backorder	Bushing	£7.06 £5.88
11	HV503 26 92-01 Available to backorder	Front Axle	£57.04 £47.53
12	HV503 24 94-02 Available to backorder	Rod Assy	£33.11 £27.59
13	HV504 45 73-01 Available to backorder	Washer	£3.84 £3.20
14	HV503 27 54-02 Available to backorder	Wheel Assy	£30.62 £25.52
16	HV504 46 18-01 Available to backorder	Spacer Ring	£3.73 £3.11
17	HV503 24 29-01 Available to backorder	Ball Bearing	£8.03 £6.69
19	HV504 45 83-01 Available to backorder	Circlip	£2.69 £2.24
20	HV503 27 51-01 Available to backorder	Hub Cap	£4.22 £3.52
21	HV735 31 10-00 Available to backorder	Clamp Ring Sga	£1.67 £1.39
22	HV503 28 37-01 Available to backorder	Handle	£53.22 £44.35
25	HV503 27 18-01 Available to backorder	Drive Shaft Assy	£41.53 £34.61
26	HV504 46 13-01 Available to backorder	Driver	£8.98 £7.48
27	HV504 46 09-01 Available to backorder	Washer	£3.84 £3.20
28	HV503 33 23-01 Available to backorder	Spring	£3.97 £3.31
29	HV504 45 99-01 Available to backorder	Washer	£2.83 £2.36
30	HV504 45 67-01 Available to backorder	Screw Ihscm	£2.05 £1.71
32	HV503 27 64-01 Available to backorder	Bushing	£7.06 £5.88
33	HV503 27 62-01 Available to backorder	Bushing	£26.28 £21.90
35	HV504 46 51-01 Available to backorder	Hub Cap	£5.02 £4.18
36	HV503 29 83-01 Available to backorder	Lever Assy	£11.54 £9.62
37	HV504 45 76-01 Available to backorder	Washer	£2.56 £2.13
40	HV504 46 05-01 Available to backorder	Woodruf Key	£5.60 £4.67
42	HV589 57 12-01 Available to backorder	Belt	£21.43 £17.86
43	HV503 24 31-01 Available to backorder	Mulch Wall	£43.46 £36.22
45	HV503 33 25-01 In stock	Spring	£5.63 £4.69
46	HV502 88 14-10 Available to backorder	Mower Blade	£35.42 £29.52
47	HV504 46 38-02 Available to backorder	Bracket	£2.33 £1.94
53	HV503 31 25-01 Available to backorder	Anti-Vibration Mount	£18.54 £15.45
54	HV502 90 35-02 Available to backorder	Handle Assy	£42.94 £35.78
55	HV504 46 15-01 Available to backorder	Screw Crpanm	£5.24 £4.37
57	HV503 30 98-01 Available to backorder	Drive Control	£51.25 £42.71
59	HV504 45 61-01 Available to backorder	Locking Nut Galvanized	£1.79 £1.49
62	HV503 31 11-02 Available to backorder	Bail Arm Assy	£33.31 £27.76
64	HV503 31 30-01 Available to backorder	Throttle Control	£44.22 £36.85
67	HV504 46 45-02 Available to backorder	Adjustment Wheel	£3.78 £3.15
69	HV503 25 94-01 In stock	Washer	£3.50 £2.92
72	HV522 54 63-01 Available to backorder	Belt Guard	£7.70 £6.42
