Husqvarna WB 48S

Model Year -

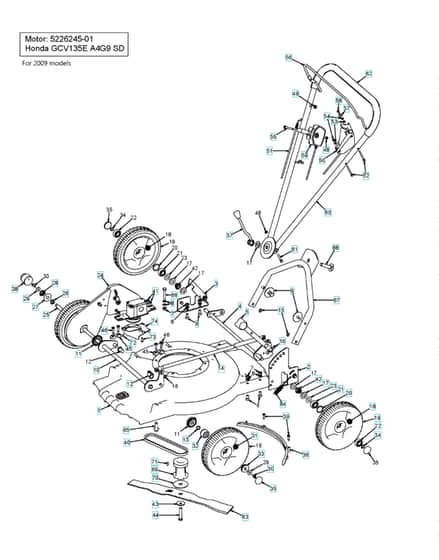

Frame & Engine - Parts Diagram

	Part No.	Details
2	HV503 24 90-02 Available to backorder	Index Plate Assy	£49.96 £41.63
3	HV503 26 58-02 Available to backorder	Handle Support Assy	£54.49 £45.41
4	HV503 25 80-01 Available to backorder	Rear Axle Assy	£66.12 £55.10
9	HV504 46 45-02 Available to backorder	Adjustment Wheel	£3.78 £3.15
10	HV503 26 92-01 Available to backorder	Front Axle	£57.04 £47.53
11	HV504 46 36-01 Available to backorder	Bushing	£7.06 £5.88
14	HV503 24 95-02 Available to backorder	Rod Assy	£25.96 £21.63
16	HV735 31 10-00 Available to backorder	Clamp Ring Sga	£1.67 £1.39
17	HV504 45 73-01 Available to backorder	Washer	£3.84 £3.20
18	HV503 27 54-02 Available to backorder	Wheel Assy	£30.62 £25.52
20	HV504 46 18-01 Available to backorder	Spacer Ring	£3.73 £3.11
21	HV503 24 29-01 Available to backorder	Ball Bearing	£8.03 £6.69
23	HV504 45 76-01 Available to backorder	Washer	£2.56 £2.13
25	HV503 27 18-01 Available to backorder	Drive Shaft Assy	£41.53 £34.61
26	HV504 46 13-01 Available to backorder	Driver	£8.98 £7.48
27	HV504 46 09-01 Available to backorder	Washer	£3.84 £3.20
28	HV503 33 23-01 Available to backorder	Spring	£3.97 £3.31
29	HV504 45 99-01 Available to backorder	Washer	£2.83 £2.36
30	HV504 45 67-01 Available to backorder	Screw Ihscm	£2.05 £1.71
32	HV503 27 64-01 Available to backorder	Bushing	£7.06 £5.88
33	HV503 27 62-01 Available to backorder	Bushing	£26.28 £21.90
34	HV504 45 83-01 Available to backorder	Circlip	£2.69 £2.24
35	HV503 27 51-01 Available to backorder	Hub Cap	£4.22 £3.52
37	HV503 29 83-01 Available to backorder	Lever Assy	£11.54 £9.62
38	HV504 46 51-01 Available to backorder	Hub Cap	£5.02 £4.18
40	HV589 57 11-01 Available to backorder	Belt	£20.34 £16.95
43	HV503 33 25-01 In stock	Spring	£5.63 £4.69
45	HV504 46 38-02 Available to backorder	Bracket	£2.33 £1.94
48	HV504 45 61-01 Available to backorder	Locking Nut Galvanized	£1.79 £1.49
51	HV503 31 40-01 Available to backorder	Cable	£16.04 £13.37
54	HV504 46 03-01 Available to backorder	Locking Nut Galvanized	£1.56 £1.30
59	HV503 31 30-01 Available to backorder	Throttle Control	£44.22 £36.85
63	HV502 88 13-10 Available to backorder	Blade	£33.04 £27.53
70	HV503 25 94-01 In stock	Washer	£3.50 £2.92
71	HV504 46 05-01 Available to backorder	Woodruf Key	£5.60 £4.67
74	HV522 54 63-01 Available to backorder	Belt Guard	£7.70 £6.42
