Description

Husqvarna WB 48S

Model Year -

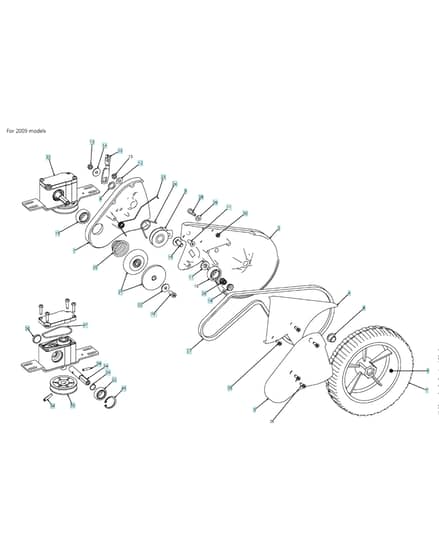

Drive - Parts Diagram

	Part No.	Details
2	HV502 88 00-01 Available to backorder	Cover	£25.96 £21.63
4	HV502 88 02-01 Available to backorder	Cover	£43.46 £36.22
6	HV503 31 74-02 Available to backorder	Wheel Assy	£69.96 £58.30
8	HV503 27 71-01 Available to backorder	Bushing	£5.63 £4.69
10	HV503 32 27-01 Available to backorder	Lever	£7.70 £6.42
13	HV504 45 61-01 Available to backorder	Locking Nut Galvanized	£1.79 £1.49
15	HV503 24 29-01 Available to backorder	Ball Bearing	£8.03 £6.69
16	HV504 46 01-01 Available to backorder	Bolt	£4.74 £3.95
17	HV504 46 06-01 Available to backorder	Washer	£3.59 £2.99
18	HV503 31 76-01 Available to backorder	Barrel Nut	£2.30 £1.92
19	HV504 45 67-01 Available to backorder	Screw Ihscm	£2.05 £1.71
20	HV503 32 34-01 Available to backorder	Spring	£6.01 £5.01
21	HV503 32 95-01 Available to backorder	Disc	£28.20 £23.50
22	HV504 45 99-01 Available to backorder	Washer	£2.83 £2.36
23	HV502 88 03-01 Available to backorder	Spring	£3.43 £2.86
24	HV503 32 66-01 Available to backorder	Spring	£3.73 £3.11
26	HV503 31 87-01 Available to backorder	Spring	£3.46 £2.88
27	HV589 57 10-01 Available to backorder	Belt	£21.43 £17.86
28	HV504 46 19-01 Available to backorder	Screw Ihscm	£2.30 £1.92
29	HV504 45 60-01 Available to backorder	Washer. 5X13X1	£2.30 £1.92
30	HV504 46 03-01 Available to backorder	Locking Nut Galvanized	£1.56 £1.30
33	HV503 33 01-01 In stock	Pulley	Was £15.54 £12.95 Special Price £9.70 £8.08
38	HV504 45 54-01 Available to backorder	Spring Pin	£0.90 £0.75
39	HV504 45 55-01 In stock	Spring Pin	Was £0.89 £0.74 Special Price £0.49 £0.41
