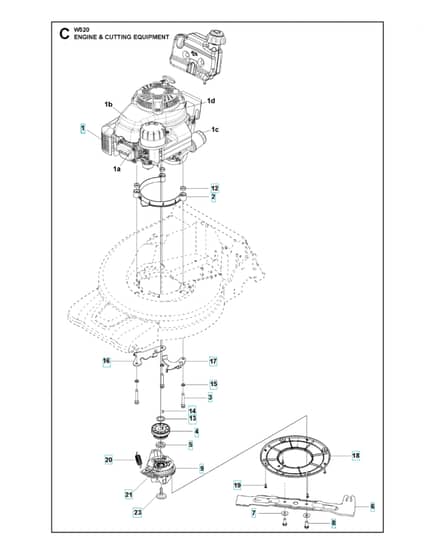

Husqvarna W520 - Engine & Cutting Equipment

Husqvarna W520 - Engine & Cutting Equipment

Part No. w520_engine_cutting_equipment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna W520 - Engine & Cutting Equipment

Husqvarna W520 - Engine & Cutting Equipment

Description

Husqvarna W520

Model Year - -

Engine & Cutting Equipment - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV578 15 92-01 In stock	Oil Filter		£26.23 £21.86
	2		HV582 52 61-01 Available to backorder	Engine Cover		£9.62 £8.02
	3		HV578 29 48-02 Available to backorder	Screw Ehhft		£1.67 £1.39
	4		HV582 17 88-01 Available to backorder	Pulley Assy		£36.94 £30.78
	5		HV582 38 56-01 Available to backorder	Spacer		£10.26 £8.55
	6		HV582 14 94-10 Available to backorder	Blade		£27.86 £23.22
	8		HV506 67 54-01 Available to backorder	Screw Ehhfmus. Can		£7.06 £5.88
	8		HV725 24 93-71 Available to backorder	Screw Ehhm		£7.18 £5.98
	9		HV529 29 90-01 Available to backorder	Clutch		£357.36 £297.80
	12		HV582 59 64-01 Available to backorder	Spacer		£8.34 £6.95
	13		HV582 33 42-01 Available to backorder	Washer		£4.12 £3.43
	14		HV582 67 36-01 Available to backorder	Key		£4.74 £3.95
	15		HV531 20 89-74 Available to backorder	Washer		£2.30 £1.92
	16		HV582 13 96-01 Available to backorder	Bracket		£14.10 £11.75
	17		HV582 14 07-01 Available to backorder	Bracket		£11.54 £9.62
	18		HV582 86 67-01 Available to backorder	Clutch Cover		£24.79 £20.66
	19		HV531 20 73-85 Available to backorder	Screw		£1.79 £1.49
	20		HV582 68 25-01 Available to backorder	Brake Spring		£10.90 £9.08

Description

Husqvarna W520

Model Year - -

Engine & Cutting Equipment - Parts Diagram
