Husqvarna W520 - Chassis

Name: Husqvarna W520 - Chassis
SKU: w520_chassis-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna W520

Model Year - -

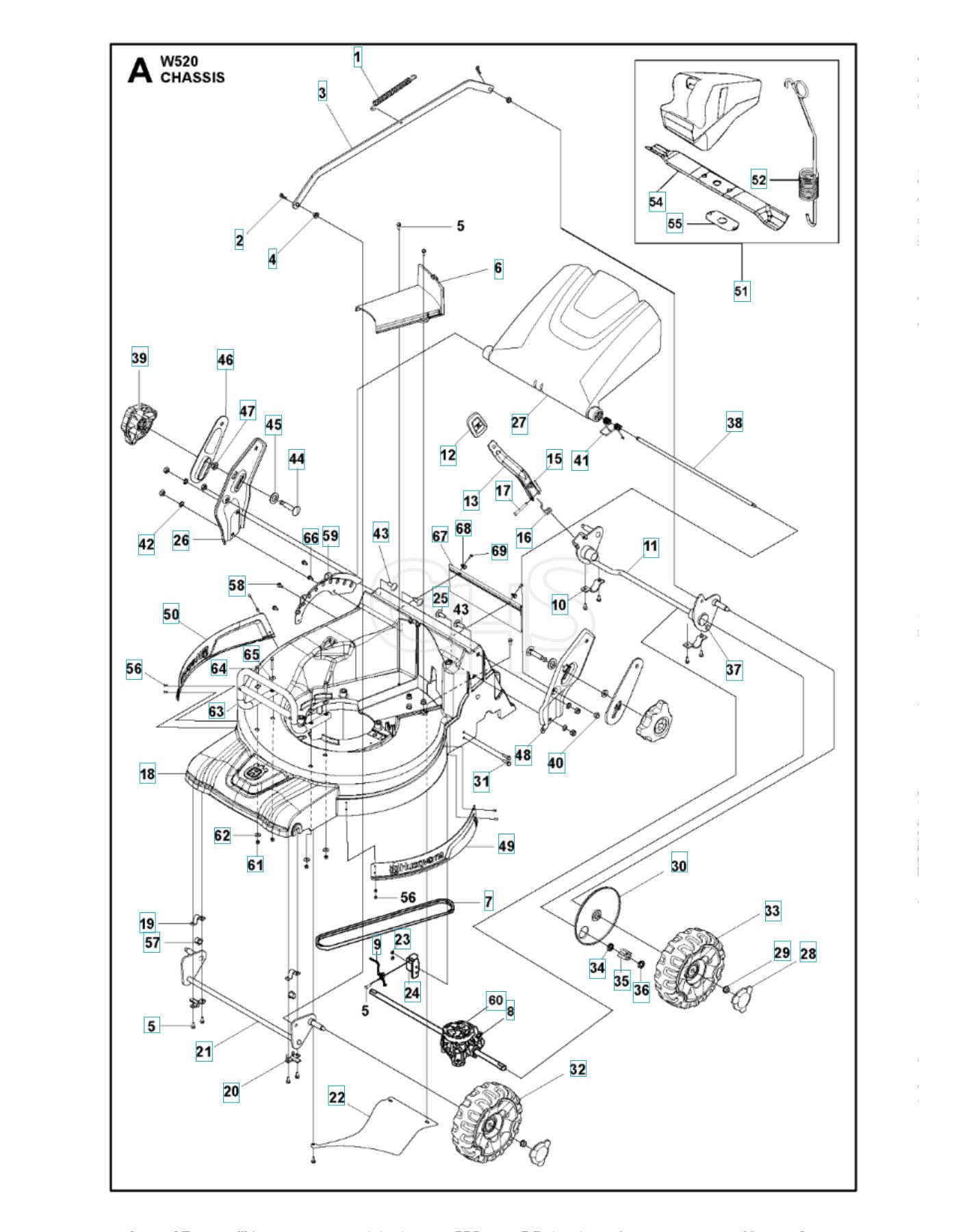

Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
4	HV501 62 25-01 Available to backorder	Bushing	£5.82 £4.85
5	HV531 20 73-85 Available to backorder	Screw	£1.82 £1.52
6	HV531 21 32-25 Available to backorder	Cover	£7.20 £6.00
8	HV582 14 17-01 Available to backorder	Gearbox	£323.88 £269.90
9	HV589 66 94-01 Available to backorder	Wire Guide	£7.12 £5.93
12	HV581 74 67-01 Available to backorder	Knob	£6.20 £5.17
15	HV587 19 84-01 Available to backorder	Pin	£3.88 £3.23
16	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
17	HV587 19 82-02 Available to backorder	Pin	£5.68 £4.73
19	HV501 07 89-01 Available to backorder	Support	£7.12 £5.93
20	HV591 16 26-01 Available to backorder	Support	£6.46 £5.38
22	HV501 96 60-01 Available to backorder	Deflector	£36.58 £30.48
23	HV732 25 14-01 Available to backorder	Hexagon Locking Nut	£2.76 £2.30
24	HV582 14 12-01 Available to backorder	Bracket	£11.00 £9.17
25	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
26	HV587 19 67-02 Available to backorder	Handle Support	£41.40 £34.50
28	HV584 15 94-01 Available to backorder	Nut Cap	£4.92 £4.10
29	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
30	HV587 19 79-01 Available to backorder	Dust Cover	£9.72 £8.10
31	HV725 23 31-51 Available to backorder	Screw	£1.82 £1.52
32	HV589 85 98-03 Available to backorder	Wheel Assy	£40.06 £33.38
33	HV536 61 96-01 Available to backorder	Wheel Assy	£45.79 £38.16
35	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
37	HV584 40 46-01 Available to backorder	Ball Bearing	£6.36 £5.30
38	HV587 19 73-01 Available to backorder	Rod	£10.73 £8.94
39	HV587 23 72-01 Available to backorder	Knob	£13.24 £11.03
40	HV732 21 18-01 In stock	Lock Nut	£2.40 £2.00
41	HV501 32 25-01 Available to backorder	Spring	£5.44 £4.53
42	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
43	HV588 87 75-01 Available to backorder	Screw	£1.82 £1.52
44	HV588 15 73-02 Available to backorder	Bolt	£2.34 £1.95
45	HV588 15 74-01 Available to backorder	Washer	£2.34 £1.95
46	HV587 78 04-01 Available to backorder	Washer	£5.44 £4.53
47	HV731 43 18-01 Available to backorder	Hexagon Thin Nut	£1.96 £1.63
48	HV587 19 68-02 Available to backorder	Handle Support	£31.72 £26.43
49	HV582 22 90-01 Available to backorder	Bumper	£20.72 £17.27
50	HV582 22 90-02 Available to backorder	Bumper	£22.64 £18.87
52	HV531 20 58-31 Available to backorder	Mulch Plug	£5.32 £4.43

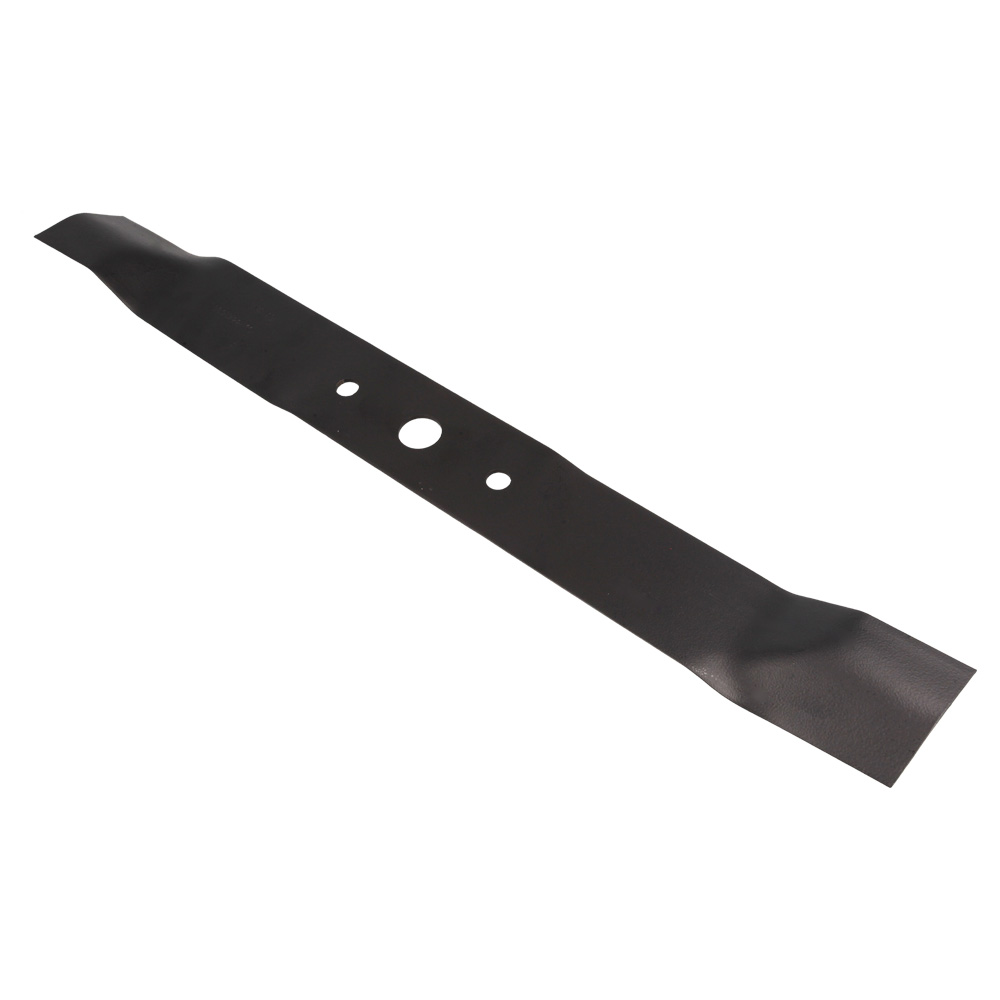

54	HV589 57 22-10 Available to backorder	Mower Bladenot For Sale In Na	£34.54 £28.78
55	HV589 99 50-01 Available to backorder	Adapter Plate	£7.76 £6.47
56	HV722 78 54-02 Available to backorder	Rivet	£2.98 £2.48
57	HV590 37 36-01 Available to backorder	Bushing	£30.40 £25.33
58	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
61	HV732 21 16-01 Available to backorder	Lock Nut	£1.82 £1.52
62	HV504 45 99-01 Available to backorder	Washer	£2.84 £2.37
65	HV514 02 66-00 In stock	Washer	£2.28 £1.90
69	HV502 43 52-01 Available to backorder	Screw Itxpantt	£1.82 £1.52
