Husqvarna TS220 T - 970728301 - Mower Deck / Cutting Deck 01

Description

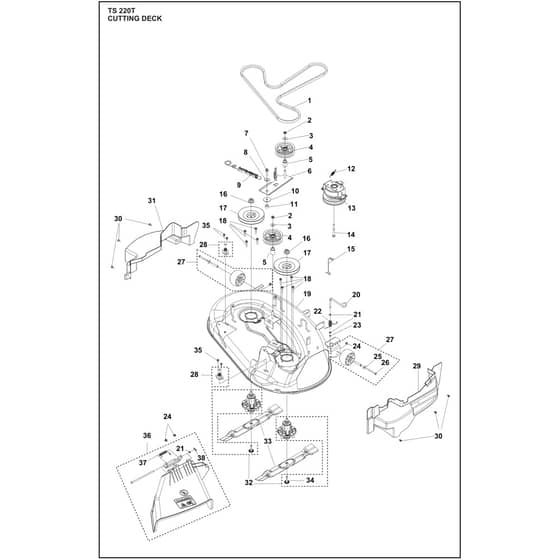

Husqvarna TS220 T - 970728301 - Mower Deck / Cutting Deck - Parts Diagram

	Part No.	Details
1	HV547 40 31-09 Available to backorder	Drive Belt	£126.60 £105.50
2	HV531 14 79-76 Available to backorder	Hexagon Locking Nut	£3.77 £3.14
3	HV547 40 32-08 Available to backorder	Washer	£4.26 £3.55
4	HV547 40 31-13 Available to backorder	Belt Tensioner	£49.92 £41.60
6	HV547 40 33-62 Available to backorder	Mounting Plate	£46.08 £38.40
7	HV531 14 82-15 Available to backorder	Bolt	£7.09 £5.91
8	HV547 40 31-47 Available to backorder	Bushing	£10.03 £8.36
9	HV547 40 32-03 Available to backorder	Spring	£12.40 £10.33
10	HV547 40 32-20 Available to backorder	Washer	£1.66 £1.38
11	HV531 14 81-12 Available to backorder	Bushing	£20.66 £17.22
12	HV531 14 81-28 Available to backorder	Spring	£5.54 £4.62
13	HV547 40 31-93 Available to backorder	Clutch	£378.96 £315.80
14	HV547 40 32-51 Available to backorder	Bolt	£8.28 £6.90
15	HV547 40 32-60 Available to backorder	Hook	£6.49 £5.41
16	HV531 14 82-19 Available to backorder	Hexagon Nut Flange	£3.89 £3.24
17	HV547 40 31-90 Available to backorder	Driving Pulley	£20.42 £17.02
18	HV547 40 32-52 Available to backorder	Bolt	£6.49 £5.41
20	HV531 14 81-84 Available to backorder	Locking Pin	£4.49 £3.74
21	HV547 40 32-27 Available to backorder	Gasket	£2.36 £1.97
22	HV531 14 81-44 Available to backorder	Torsion Spring	£7.68 £6.40
23	HV531 14 81-02 Available to backorder	Circlip	£0.71 £0.59
24	HV547 40 31-03 Available to backorder	Hexagon Locking Nut	£2.96 £2.47
25	HV547 40 32-11 Available to backorder	Washer	£3.31 £2.76
26	HV547 40 31-17 Available to backorder	Bolt	£6.49 £5.41
27	HV531 14 82-01 Available to backorder	Support Wheel	£20.06 £16.72
28	HV531 14 82-03 Available to backorder	Nozzle Assy	£11.21 £9.34
30	HV547 40 31-33 Available to backorder	Bolt	£2.59 £2.16
32	HV547 31 71-01 Available to backorder	Blade Housing Assy	£177.00 £147.50
33	HV531 14 83-03 Available to backorder	Blade	£43.60 £36.33
34	HV547 31 69-01 In stock	Bolt	£9.04 £7.53
35	HV547 40 32-58 Available to backorder	Bolt	£2.83 £2.36
38	HV531 14 81-54 Available to backorder	Split Pin	£1.18 £0.98
