Husqvarna TS100i - 970745102 - Chassis

Name: Husqvarna TS100i - 970745102 - Chassis
SKU: TS100i_970745102_TR_818446_Original_20file-group
Price: 2.16 GBP
Availability: InStock

Part No. TS100i_970745102_TR_818446_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

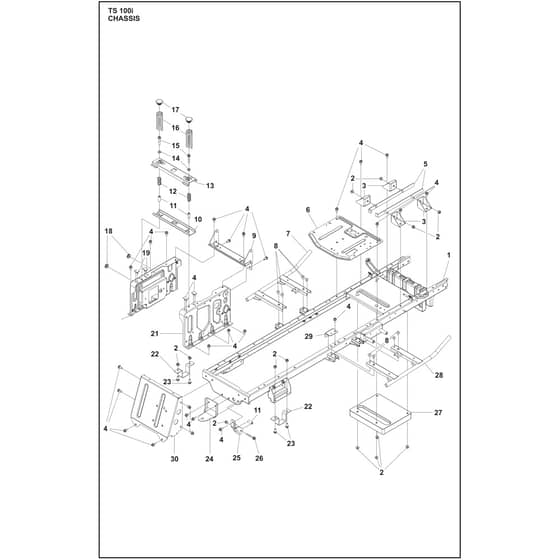

Husqvarna TS100i - 970745102 - Chassis - Parts Diagram

	Part No.	Details
2	HV547 40 31-03 Available to backorder	Hexagon Locking Nut	£2.96 £2.47
4	HV547 40 31-22 Available to backorder	Bolt	£4.37 £3.64
7	HV531 14 79-71 Available to backorder	Support Leg	£43.69 £36.41
9	HV531 14 79-62 Available to backorder	Seat Bracket	£45.48 £37.90
10	HV531 14 79-86 Available to backorder	Mounting Plate	£22.45 £18.71
11	HV531 14 81-19 Available to backorder	Bushing	£11.21 £9.34
12	HV531 14 81-41 Available to backorder	Compression Spring	£6.49 £5.41
13	HV531 14 79-87 Available to backorder	Mounting Plate	£22.45 £18.71
14	HV531 14 79-45 Available to backorder	Damper	£3.54 £2.95
16	HV531 14 81-40 Available to backorder	Compression Spring	£22.45 £18.71
17	HV531 14 81-57 Available to backorder	Cap	£6.49 £5.41
19	HV531 14 79-43 Available to backorder	Damper	£4.14 £3.45
21	HV531 14 79-64 Available to backorder	Seat Bracket	£69.12 £57.60
23	HV547 40 32-43 Available to backorder	Bolt	£2.59 £2.16
24	HV531 14 79-57 Available to backorder	Mounting Plate	£24.20 £20.17
26	HV506 57 01-07 Available to backorder	Screw Ehhfm	£7.06 £5.88
28	HV531 14 79-72 Available to backorder	Support Leg	£43.69 £36.41
