Husqvarna Ts 354Xd-2023 - Drive

Name: Husqvarna Ts 354Xd-2023 - Drive
SKU: ts_354xd_2023_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. ts_354xd_2023_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Ts 354Xd-2023

Model Year -

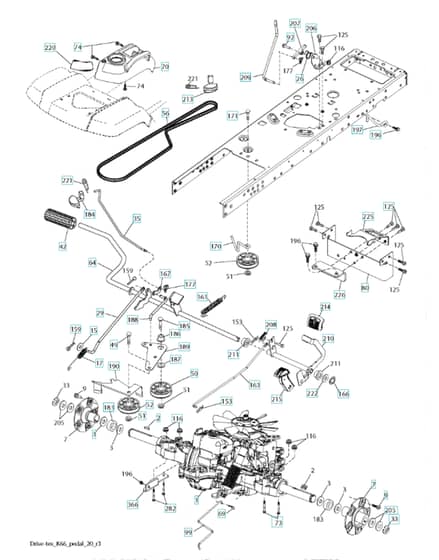

Drive - Parts Diagram

	Part No.	Details
2	HV539 91 27-57 Available to backorder	Key	£4.74 £3.95
7	HV586 93 54-02 Available to backorder	Hub	£100.32 £83.60
26	HV532 19 96-79 Available to backorder	Spring	£3.73 £3.11
29	HV532 40 72-45 Available to backorder	Rod.Brake.K66 Subs/2	£9.62 £8.02
33	HV812 00 00-53 Available to backorder	E-Clip	£0.90 £0.75
35	HV583 86 45-01 Available to backorder	Rodfor 96041041900	£20.50 £17.08
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
51	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV532 12 59-07 Available to backorder	Belt	£62.76 £52.30
69	HV583 40 49-01 Available to backorder	Hairpin.Soft.Zinc.059X1.125	£0.77 £0.64
125	HV532 42 88-67 Available to backorder	Bolt	£3.97 £3.31
153	HV532 00 44-97 Available to backorder	Clip	£1.49 £1.24
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
163	HV532 40 72-46 Available to backorder	Rod.Pedal.Control.K66.Subs/2	£35.88 £29.90
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
184	HV532 19 64-39 Available to backorder	Handle	£14.10 £11.75
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV582 21 70-01 Available to backorder	Link	£10.72 £8.93
196	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
206	HV532 44 85-96 Available to backorder	Bracket	£10.26 £8.55
211	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
213	HV532 40 31-19 Available to backorder	Control	£14.10 £11.75
215	HV586 60 65-02 Available to backorder	Pedal	£35.88 £29.90
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
222	HV879 21 20-10 Available to backorder	Washer	£5.63 £4.69
226	HV532 40 71-09 Available to backorder	Bracket	£19.88 £16.57
