Description

Husqvarna Ts 354X

Model Year -

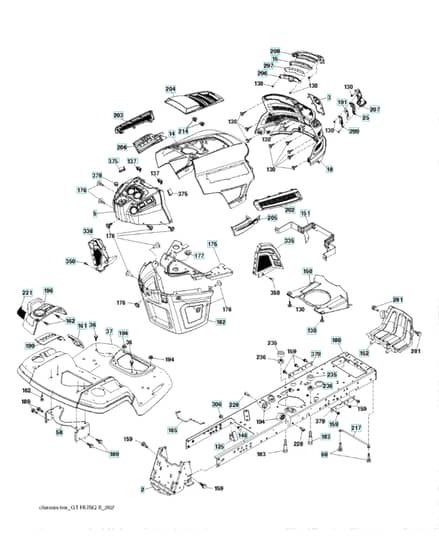

Chassis & Frame - Parts Diagram

	Part No.	Details
-1	HV532 43 18-82 Available to backorder	Guard	£108.12 £90.10
2	HV580 43 44-01 Available to backorder	Draw Bar	£169.80 £141.50
3	HV532 44 44-81 Available to backorder	Logotype	£16.04 £13.37
125	HV581 68 48-01 Available to backorder	Clip	£0.90 £0.75
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
146	HV581 85 79-01 Available to backorder	Bolt	£2.83 £2.36
150	HV532 43 97-74 Available to backorder	Air Duct	£58.32 £48.60
151	HV532 43 66-70 Available to backorder	Bracket	£67.56 £56.30
152	HV532 43 98-70 Available to backorder	Shield	£62.52 £52.10
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
165	HV532 19 43-30 Available to backorder	Support	£7.79 £6.49
175	HV590 60 77-02 Available to backorder	Cross Member	£63.96 £53.30
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-28 Available to backorder	Bushing	£10.88 £9.07
182	HV532 40 68-59 Available to backorder	Dash	£161.04 £134.20
191	HV586 18 28-01 Available to backorder	Reflector	£7.37 £6.14
202	HV532 43 97-28 Available to backorder	Coverrh	£28.84 £24.03
203	HV532 43 97-27 Available to backorder	Coverlh	£29.47 £24.56
204	HV587 48 58-01 Available to backorder	Vent	£44.22 £36.85
205	HV532 43 97-30 Available to backorder	Skirtrh	£26.92 £22.43
206	HV532 43 97-29 Available to backorder	Skirtlh	£32.70 £27.25
214	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
221	HV532 19 89-09 Available to backorder	Lenslh	£17.32 £14.43
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
281	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
296	HV585 42 05-01 Available to backorder	Light	£49.24 £41.03
297	HV586 18 29-01 Available to backorder	Reflector	£8.69 £7.24
299	HV585 42 04-01 Available to backorder	Light	£49.24 £41.03
336	HV532 44 53-09 Available to backorder	Cover	£39.73 £33.11
350	HV532 44 51-43 Available to backorder	Clip	£1.06 £0.88
375	HV586 90 82-01 Available to backorder	Bumper	£5.90 £4.92
378	HV590 84 98-01 Available to backorder	Bushing	£6.29 £5.24
