Husqvarna Ts 254G - Drive

Name: Husqvarna Ts 254G - Drive
SKU: ts_254g_drive-group
Price: 0.75 GBP
Availability: InStock

Part No. ts_254g_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Ts 254G

Model Year -

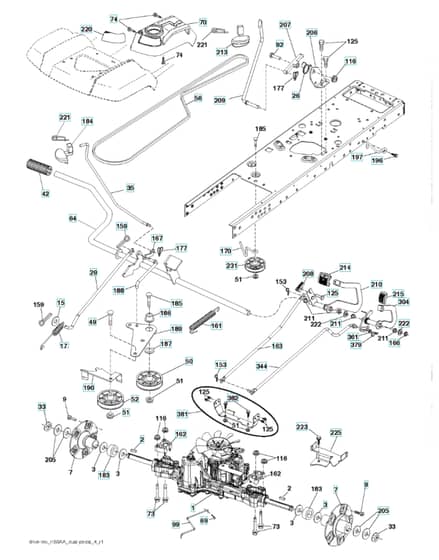

Drive - Parts Diagram

	Part No.	Details
2	HV539 91 27-57 Available to backorder	Key	£4.74 £3.95
7	HV586 93 54-02 Available to backorder	Hub	£100.32 £83.60
17	HV532 41 36-78 Available to backorder	Srping.Brake.K46.GreenSubs/2	£12.82 £10.68
26	HV532 19 96-79 Available to backorder	Spring	£3.73 £3.11
33	HV812 00 00-53 Available to backorder	E-Clip	£0.90 £0.75
42	HV532 00 88-83 Available to backorder	Pedal Rubber	£10.90 £9.08
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
153	HV532 00 44-97 Available to backorder	Clip	£1.49 £1.24
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
170	HV532 41 34-30 Available to backorder	Belt Guide	£9.62 £8.02
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV582 21 70-01 Available to backorder	Link	£10.72 £8.93
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
196	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
206	HV532 44 85-96 Available to backorder	Bracket	£10.26 £8.55
211	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
213	HV532 40 31-19 Available to backorder	Control	£14.10 £11.75
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
222	HV879 21 20-10 Available to backorder	Washer	£5.63 £4.69
225	HV532 40 33-19 Available to backorder	Belt Guide	£15.38 £12.82
231	HV532 40 72-87 Available to backorder	Pulley	£34.66 £28.88
