Husqvarna Ts 243T - Chassis & Enclosures

Description

Husqvarna Ts 243T

Model Year -

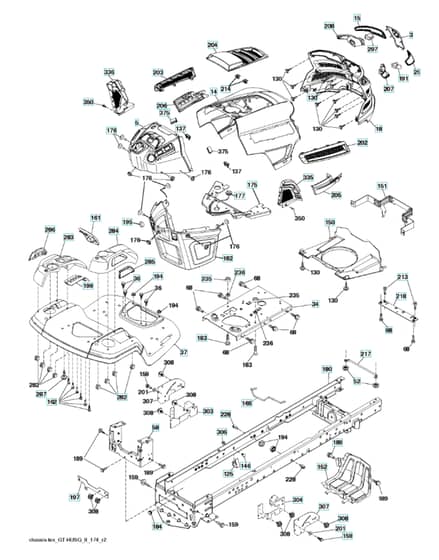

Chassis & Enclosures - Parts Diagram

	Part No.	Details
3	HV532 44 44-81 Available to backorder	Logotype	£16.04 £13.37
15	HV532 43 97-33 Available to backorder	Lens	£21.78 £18.15
25	HV532 44 33-85 Available to backorder	Lens	£22.44 £18.70
34	HV580 91 08-01 Available to backorder	Chassis	£118.92 £99.10
125	HV581 68 48-01 Available to backorder	Clip	£0.90 £0.75
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
146	HV581 85 79-01 Available to backorder	Bolt	£2.83 £2.36
150	HV532 43 97-74 Available to backorder	Air Duct	£58.32 £48.60
151	HV532 43 66-70 Available to backorder	Bracket	£67.56 £56.30
152	HV532 43 98-70 Available to backorder	Shield	£62.52 £52.10
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
162	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
175	HV590 60 77-02 Available to backorder	Cross Member	£63.96 £53.30
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-27 Available to backorder	Bushing	£11.09 £9.24
180	HV532 41 50-64 Available to backorder	Frame	£158.04 £131.70
182	HV586 73 86-02 Available to backorder	Dash	£114.60 £95.50
183	HV874 52 05-20 Available to backorder	Bolt	£4.74 £3.95
184	HV587 55 41-01 Available to backorder	Plug	£4.36 £3.63
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
197	HV589 20 46-02 Available to backorder	Shield	£19.21 £16.01
199	HV532 41 34-85 Available to backorder	Plate	£19.21 £16.01
202	HV532 43 97-28 Available to backorder	Cover	£28.84 £24.03
203	HV532 43 97-27 Available to backorder	Cover	£29.47 £24.56
205	HV532 43 97-30 Available to backorder	Skirt	£26.92 £22.43
206	HV532 43 97-29 Available to backorder	Skirt	£32.70 £27.25
207	HV587 46 48-01 Available to backorder	Headlight	£23.72 £19.77
208	HV587 46 45-01 Available to backorder	Headlight	£23.72 £19.77
214	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
284	HV532 43 98-23 Available to backorder	Console	£34.74 £28.95
307	HV587 49 46-01 Available to backorder	Shield	£33.20 £27.67
308	HV532 17 18-77 Available to backorder	Bolt	£5.02 £4.18
336	HV532 44 53-09 Available to backorder	Cover	£39.73 £33.11
350	HV532 44 51-43 Available to backorder	Clip	£1.06 £0.88
375	HV586 90 82-01 Available to backorder	Bumper	£5.90 £4.92
