Husqvarna Ts 243 - Mower Deck & Cutting Deck

Description

Husqvarna Ts 243

Model Year -

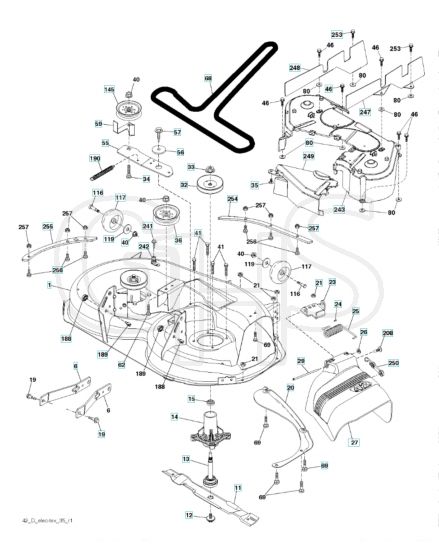

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
11	HV532 13 89-71 Available to backorder	Blade	£29.10 £24.25
12	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
20	HV531 16 70-01 Available to backorder	Rail	£28.06 £23.38
23	HV532 19 25-57 Available to backorder	Hinge	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 41 14-85 Available to backorder	Noname	£63.96 £53.30
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
35	HV532 13 38-35 Available to backorder	Xmas Tree Fastner	£1.28 £1.07
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
55	HV532 43 71-10 Available to backorder	Arm	£18.60 £15.50
56	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
57	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
62	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
68	HV532 14 49-59 Available to backorder	Belt	£65.64 £54.70
69	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
117	HV532 18 86-06 Available to backorder	Wheel	£14.98 £12.48
188	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
189	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
190	HV532 19 72-51 Available to backorder	Spring	£18.60 £15.50
208	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
247	HV532 43 02-61 Available to backorder	Shield	£48.04 £40.03
248	HV532 43 02-60 Available to backorder	Shield	£18.08 £15.07
249	HV532 40 65-14 Available to backorder	Cover	£23.78 £19.82
254	HV585 31 68-05 Available to backorder	Reinforcement Plate	£21.16 £17.63
255	HV585 31 70-05 Available to backorder	Reinforcement Plate	£21.16 £17.63
256	HV539 10 98-00 Available to backorder	Bolt	£3.12 £2.60
