Husqvarna Ts 242Xd-2023 - Mower Deck & Cutting Deck

Name: Husqvarna Ts 242Xd-2023 - Mower Deck & Cutting Deck
SKU: ts_242xd_2023_mower_deck_cutting_deck-group
Price: 1.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ts 242Xd-2023 - Mower Deck & Cutting Deck

Description

Husqvarna Ts 242Xd-2023

Model Year -

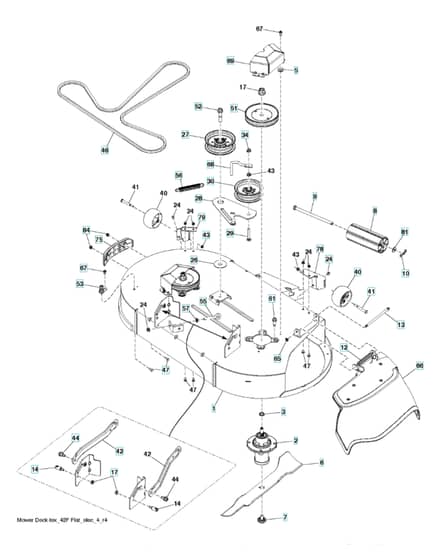

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV539 13 18-98 Available to backorder	Spindle	£111.62 £93.02
3	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
6	HV586 91 81-02 Available to backorder	Blade	£33.22 £27.68
7	HV532 19 30-03 In stock	Screw	£15.85 £13.21
8	HV532 17 60-66 Available to backorder	Roller	£15.80 £13.17
10	HV532 19 42-08 Available to backorder	Pin	£1.64 £1.37
12	HV587 35 47-01 Available to backorder	Spring	£9.72 £8.10
13	HV595 29 70-01 Available to backorder	Rod	£9.46 £7.88
26	HV532 17 85-15 In stock	Washer	Was £8.71 £7.26 Special Price £5.82 £4.85
27	HV532 19 61-04 Available to backorder	Pulley	£112.14 £93.45
28	HV586 87 40-02 Available to backorder	Arm	£40.12 £33.43
30	HV532 19 61-06 Available to backorder	Pulley	£100.04 £83.37
40	HV589 52 73-01 Available to backorder	Wheel	£20.62 £17.18
41	HV596 43 44-04 Available to backorder	Bolt	£5.65 £4.71
43	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
44	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
51	HV532 19 97-91 Available to backorder	Pulley	£44.21 £36.84
52	HV588 43 83-01 Available to backorder	Screw	£8.40 £7.00
53	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
56	HV587 35 84-01 Available to backorder	Spring	£14.88 £12.40
61	HV584 95 39-01 Available to backorder	Bolt	£5.44 £4.53
65	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
66	HV587 30 57-01 Available to backorder	Deflector	£130.68 £108.90
67	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
68	HV532 19 84-68 Available to backorder	Belt Guide	£11.00 £9.17
69	HV586 93 68-05 Available to backorder	Cover	£15.54 £12.95
81	HV582 36 05-01 Available to backorder	Bushing	£3.48 £2.90
84	HV532 17 01-65 Available to backorder	Bolt	£5.32 £4.43
