Husqvarna Ts 146Xkd - Mower Deck & Cutting Deck

Name: Husqvarna Ts 146Xkd - Mower Deck & Cutting Deck
SKU: ts_146xkd_2021_01_mower_deck_cutting_deck-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ts 146Xkd - Mower Deck & Cutting Deck

Description

Husqvarna Ts 146Xkd

Model Year - 2021-01

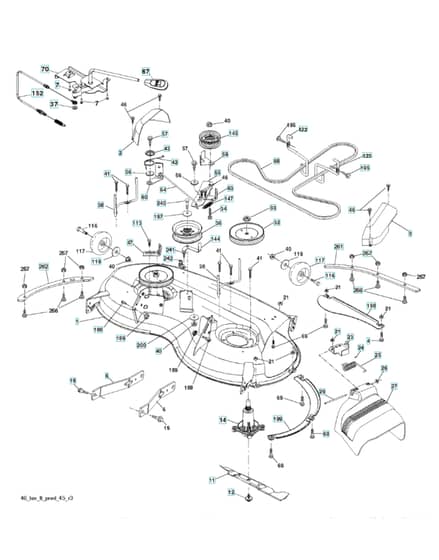

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 40 55-07 Available to backorder	Cover	£11.56 £9.63
3	HV532 40 55-06 Available to backorder	Cover	£11.56 £9.63
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
11	HV532 40 53-80 Available to backorder	Ride On Blade	£35.20 £29.33
12	HV584 30 93-01 In stock	Screw	£15.85 £13.21
14	HV587 81 97-01 Available to backorder	Mandrel	£158.62 £132.18
19	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
23	HV532 19 25-57 Available to backorder	Hinge	£13.58 £11.32
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
27	HV532 40 53-57 Available to backorder	Deflector	£122.26 £101.88
29	HV595 29 70-01 Available to backorder	Rod	£9.46 £7.88
34	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
41	HV584 95 39-01 Available to backorder	Bolt	£5.44 £4.53
42	HV532 19 84-10 Available to backorder	Spring	£5.04 £4.20
43	HV532 19 72-56 Available to backorder	Spring	£5.12 £4.27
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
47	HV532 19 72-50 Available to backorder	Bracket	£9.06 £7.55
55	HV531 16 94-01 In stock	Arm	£19.13 £15.94
56	HV532 19 90-92 Available to backorder	Spacer	£6.94 £5.78
57	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
60	HV532 40 01-32 Available to backorder	Armlh	£23.62 £19.68
67	HV532 40 30-12 Available to backorder	Handle	£13.58 £11.32
113	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
116	HV596 43 44-04 Available to backorder	Bolt	£5.65 £4.71
117	HV589 52 73-01 Available to backorder	Wheel	£20.62 £17.18
122	HV531 16 95-01 Available to backorder	Belt Guidelh	£18.73 £15.61
123	HV531 16 97-01 Available to backorder	Belt Guiderh	£14.04 £11.70
147	HV532 40 18-72 Available to backorder	Spring	£6.94 £5.78
152	HV584 24 35-01 Available to backorder	Cable	£71.16 £59.30
195	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
198	HV532 40 31-49 Available to backorder	Plate	£31.04 £25.87
199	HV532 40 31-50 Available to backorder	Plate	£33.64 £28.03
200	HV532 41 35-24 Available to backorder	Washer	£8.95 £7.46
241	HV532 15 29-27 In stock	Screw	£2.58 £2.15
242	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
261	HV589 48 18-05 Available to backorder	Plate	£37.54 £31.28
262	HV589 48 20-05 Available to backorder	Plate	£37.54 £31.28
