Husqvarna Ts 146Xk-2023 - Mower Deck & Cutting Deck

Description

Husqvarna Ts 146Xk-2023

Model Year -

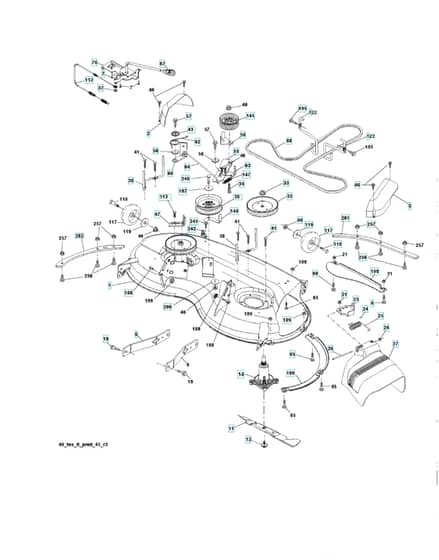

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
2	HV532 40 55-07 Available to backorder	Cover	£11.66 £9.72
3	HV532 40 55-06 Available to backorder	Cover	£11.66 £9.72
11	HV532 40 53-80 Available to backorder	Ride On Blade	£28.99 £24.16
12	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
14	HV587 81 97-01 Available to backorder	Mandrel	£158.64 £132.20
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
23	HV532 19 25-57 Available to backorder	Hinge	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
27	HV532 40 53-57 Available to backorder	Deflector	£117.12 £97.60
29	HV595 29 70-01 In stock	Rod	£10.15 £8.46
32	HV532 19 59-45 Available to backorder	Pulley	£55.91 £46.59
33	HV596 13 48-01 Available to backorder	Hexagon Nut	£1.51 £1.26
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
36	HV532 19 61-06 Available to backorder	Pulley	£97.56 £81.30
40	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
42	HV532 19 84-10 Available to backorder	Spring	£5.02 £4.18
43	HV532 19 72-56 Available to backorder	Spring	£4.99 £4.16
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV532 19 72-50 Available to backorder	Bracket	£8.98 £7.48
56	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
57	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
60	HV532 40 01-32 Available to backorder	Armlh	£15.66 £13.05
63	HV532 19 94-78 Available to backorder	Arm	£24.14 £20.12
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
68	HV584 45 31-01 Available to backorder	Belt	£69.36 £57.80
113	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV589 52 73-01 Available to backorder	Wheel	£20.74 £17.28
145	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
147	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
152	HV584 24 35-01 Available to backorder	Cable	£64.92 £54.10
195	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
257	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
261	HV589 48 18-05 Available to backorder	Plate	£37.15 £30.96
262	HV589 48 20-05 Available to backorder	Plate	£37.15 £30.96
