Husqvarna Ts 146Xk-2023 - Drive

Name: Husqvarna Ts 146Xk-2023 - Drive
SKU: ts_146xk_2023_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Ts 146Xk-2023

Model Year -

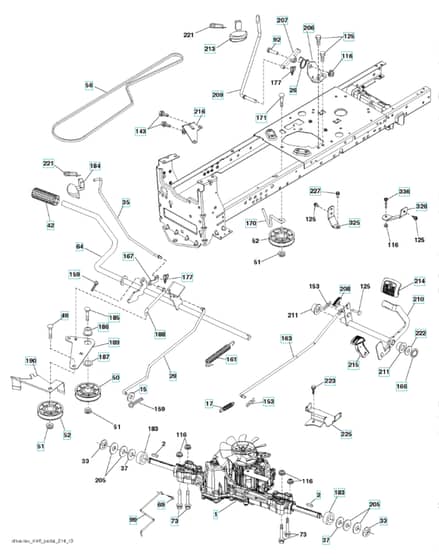

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
17	HV532 41 36-78 Available to backorder	Srping.Brake.K46.GreenSubs/2	£12.94 £10.78
26	HV532 19 96-79 Available to backorder	Spring	£3.76 £3.13
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
37	HV532 18 89-67 In stock	Washer	£5.04 £4.20
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
51	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
69	HV583 40 49-01 Available to backorder	Hairpin.Soft.Zinc.059X1.125	£0.77 £0.64
99	HV582 40 45-01 Available to backorder	Rod	£9.72 £8.10
125	HV532 42 88-67 Available to backorder	Bolt	£4.02 £3.35
153	HV532 00 44-97 Available to backorder	Clip	£1.76 £1.47
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
183	HV532 13 70-57 Available to backorder	Spacer	£9.52 £7.93
184	HV532 19 64-39 Available to backorder	Handle	£14.22 £11.85
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV582 21 70-01 Available to backorder	Link	£10.36 £8.63
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
206	HV532 44 85-96 Available to backorder	Bracket	£10.36 £8.63
210	HV532 40 09-80 Available to backorder	Pedal Arm	£36.22 £30.18
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
213	HV532 40 31-19 Available to backorder	Control	£14.22 £11.85
215	HV586 60 65-02 Available to backorder	Pedal	£36.22 £30.18
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
