Husqvarna Ts 142Tx - Engine

Name: Husqvarna Ts 142Tx - Engine
SKU: ts_142tx_engine-group
Price: 0.64 GBP
Availability: InStock

Part No. ts_142tx_engine-group

Description

Husqvarna Ts 142Tx

Model Year -

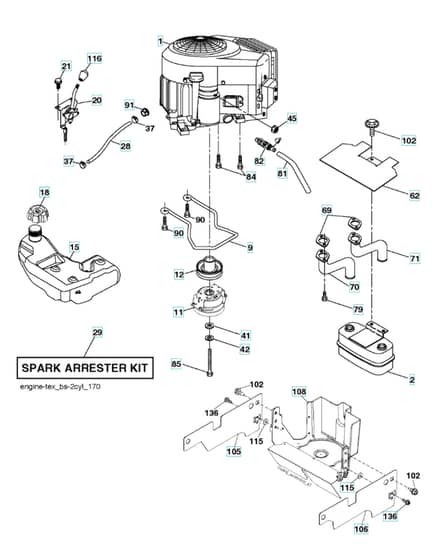

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Available to backorder	Muffler	£129.84 £108.20
9	HV596 50 15-02 Available to backorder	Keeper	£15.40 £12.83
11	HV587 24 15-01 Available to backorder	Clutch	£385.98 £321.65
12	HV532 40 50-97 Available to backorder	Pulley	£37.45 £31.21
18	HV585 12 48-01 Available to backorder	Fuel Cap Assyfits 2.75" Filler Neck	£30.76 £25.63
20	HV587 24 27-01 Available to backorder	Throttle	£30.76 £25.63
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
41	HV532 12 61-97 Available to backorder	Washer	£14.74 £12.28
62	HV532 43 40-17 Available to backorder	Shield	£22.44 £18.70
69	HV532 16 53-91 Available to backorder	Gasket	£5.99 £4.99
70	HV581 88 11-01 Available to backorder	Tube	£37.62 £31.35
82	HV532 42 82-87 Available to backorder	Plug	£12.00 £10.00
84	HV817 06 06-20 Available to backorder	Screw	£5.75 £4.79
85	HV581 33 28-04 Available to backorder	Bolt	£12.48 £10.40
90	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
91	HV532 18 74-95 Available to backorder	Bushing	£8.98 £7.48
105	HV501 26 72-02 Available to backorder	Safety Guard	£25.64 £21.37
106	HV501 26 82-02 Available to backorder	Safety Guard	£25.64 £21.37
108	HV587 17 95-09 Available to backorder	Cover	£60.12 £50.10
115	HV532 43 17-61 Available to backorder	Retainer	£6.29 £5.24
