Husqvarna Ts 142L - Mower Deck & Cutting Deck

Description

Husqvarna Ts 142L

Model Year -

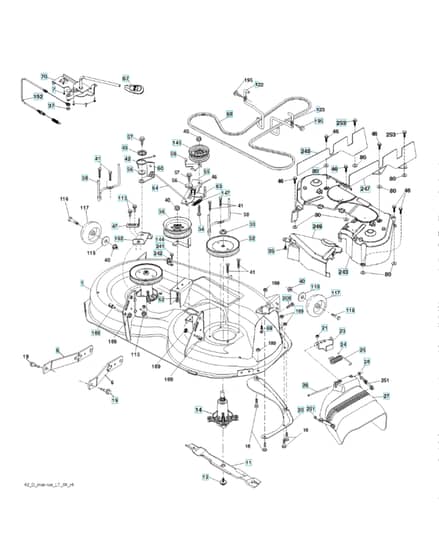

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV588 62 21-01 Out of stock	Service Tools	£776.40 £647.00
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
11	HV532 13 89-71 Out of stock	Blade	£31.91 £26.59
12	HV584 30 93-01 In stock	Screw	£8.16 £6.80
14	HV587 81 97-01 Out of stock	Mandrel	£145.08 £120.90
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
20	HV532 15 97-70 Out of stock	Rail	£26.74 £22.28
23	HV532 19 25-57 Out of stock	Hinge	£13.06 £10.88
24	HV532 10 53-04 Out of stock	Hub Cap	£3.35 £2.79
25	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
26	HV532 11 04-52 Out of stock	Nut	£2.16 £1.80
29	HV595 29 70-01 Out of stock	Rod	£14.76 £12.30
33	HV596 13 48-01 Out of stock	Hexagon Nut	£1.44 £1.20
34	HV596 13 61-01 Out of stock	Bolt	£6.54 £5.45
35	HV532 13 38-35 Out of stock	Xmas Tree Fastner	£1.24 £1.03
41	HV584 95 39-01 Out of stock	Bolt	£5.60 £4.67
42	HV532 19 84-10 Out of stock	Spring	£4.86 £4.05
43	HV532 19 72-56 Out of stock	Spring	£5.12 £4.27
46	HV532 13 77-29 Out of stock	Screw	£2.70 £2.25
47	HV532 19 72-50 Out of stock	Bracket	£8.71 £7.26
55	HV532 43 71-10 Out of stock	Arm	£18.04 £15.03
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£6.11 £5.09
64	HV532 19 99-18 Out of stock	Link Brake	£11.15 £9.29
67	HV532 40 30-12 Out of stock	Handle	£13.06 £10.88
68	HV598 55 91-01 Out of stock	Beltfor 96041045300	£68.88 £57.40
70	HV532 40 12-46 Out of stock	Clutch	£63.95 £53.29
113	HV817 00 05-10 Out of stock	Bolt	£3.48 £2.90
117	HV589 52 74-01 Out of stock	Wheel	£15.19 £12.66
122	HV531 16 95-01 Out of stock	Belt Guide	£18.73 £15.61
123	HV531 16 97-01 Out of stock	Belt Guide	£12.98 £10.82
147	HV532 40 19-71 Out of stock	Spring	£5.34 £4.45
152	HV584 24 35-01 Out of stock	Cable	£63.48 £52.90
195	HV817 00 06-12 Out of stock	Screw	£5.60 £4.67
208	HV817 67 06-08 Out of stock	Screw	£5.09 £4.24
241	HV532 15 29-27 In stock	Screw	£2.48 £2.07
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.16 £4.30
247	HV532 43 02-61 Out of stock	Shield	£48.92 £40.77
248	HV532 43 02-60 Out of stock	Shield	£18.42 £15.35
249	HV532 40 65-14 Out of stock	Cover	£24.23 £20.19
