Husqvarna Ts 138-2023 - Mower Deck & Cutting Deck 2

Name: Husqvarna Ts 138-2023 - Mower Deck & Cutting Deck 2
SKU: ts_138_2023_mower_deck_cutting_deck_2-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ts 138-2023 - Mower Deck & Cutting Deck 2

Description

Husqvarna Ts 138-2023

Model Year -

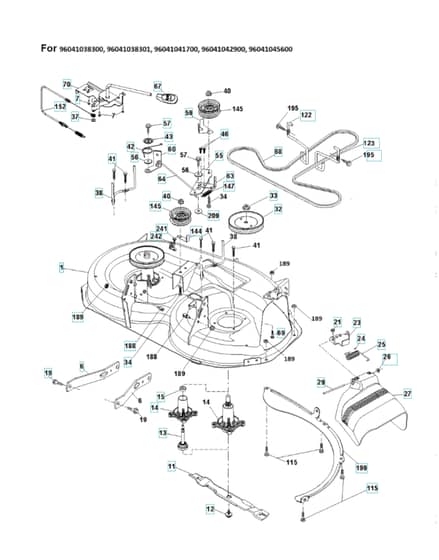

Mower Deck & Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
11	HV581 11 63-02 Available to backorder	Blade	£30.40 £25.33
12	HV584 30 93-01 In stock	Screw	£15.85 £13.21
14	HV587 81 97-01 Available to backorder	Mandrel	£158.62 £132.18
19	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
23	HV532 19 25-57 Available to backorder	Hinge	£13.58 £11.32
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
25	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
26	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
27	HV532 19 25-72 Available to backorder	Shield	£66.64 £55.53
29	HV595 29 70-01 Available to backorder	Rod	£9.46 £7.88
34	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
38	HV532 40 01-40 Available to backorder	Keeper	£37.84 £31.53
40	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
41	HV584 95 39-01 Available to backorder	Bolt	£5.44 £4.53
42	HV532 19 84-10 Available to backorder	Spring	£5.04 £4.20
43	HV532 19 72-56 Available to backorder	Spring	£5.12 £4.27
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
56	HV532 19 90-92 Available to backorder	Spacer	£6.94 £5.78
57	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
60	HV532 40 01-32 Available to backorder	Arm	£23.62 £19.68
63	HV532 40 01-30 Available to backorder	Arm	£20.82 £17.35
64	HV532 19 99-18 Available to backorder	Link Brake	£10.72 £8.93
67	HV532 40 30-12 Available to backorder	Handle	£13.58 £11.32
68	HV532 40 83-81 Available to backorder	Belt	£56.64 £47.20
70	HV532 40 12-46 Available to backorder	Clutch	£63.95 £53.29
145	HV532 17 79-68 Available to backorder	Pulley	£58.94 £49.12
147	HV532 40 18-72 Available to backorder	Spring	£6.94 £5.78
152	HV532 43 51-11 Available to backorder	Cable	£70.32 £58.60
195	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
241	HV532 15 29-27 In stock	Screw	£2.58 £2.15
242	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
