Husqvarna Ts 138-2023 - Drive

Name: Husqvarna Ts 138-2023 - Drive
SKU: ts_138_2023_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. ts_138_2023_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Ts 138-2023

Model Year -

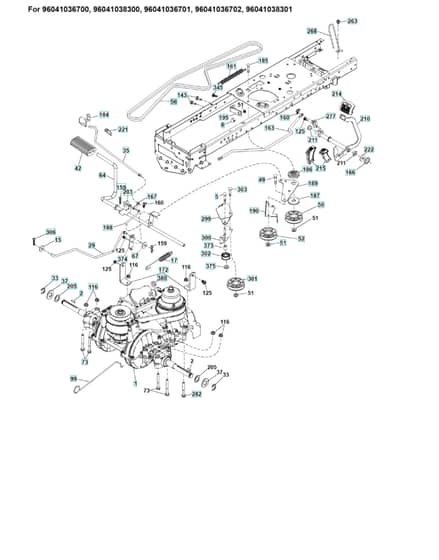

Drive - Parts Diagram

	Part No.	Details
1	HV590 27 75-01 Available to backorder	Transaxle	£354.50 £295.42
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
17	HV501 48 71-01 Available to backorder	Spring	£7.70 £6.42
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
37	HV532 18 89-67 In stock	Washer	£4.33 £3.61
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
51	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV581 60 38-01 In stock	Beltfor 96041036700. 96041036701. 96041036702	£64.93 £54.11
64	HV589 67 14-01 Available to backorder	Shaft	£49.19 £40.99
67	HV582 58 01-01 Available to backorder	Washer	£2.17 £1.81
99	HV532 43 59-35 Available to backorder	Rod	£8.98 £7.48
125	HV532 42 88-67 Available to backorder	Bolt	£3.97 £3.31
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
163	HV583 97 13-01 Available to backorder	Rod	£18.60 £15.50
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
172	HV583 97 42-01 Available to backorder	Strap	£8.34 £6.95
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV582 21 70-01 Available to backorder	Link	£10.72 £8.93
195	HV581 50 46-01 Available to backorder	Bracket	£6.14 £5.12
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
211	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
215	HV591 10 01-01 Available to backorder	Pedal	£12.82 £10.68
215	HV532 44 82-54 Available to backorder	Padfor 96041036700	£12.18 £10.15
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
222	HV879 21 20-10 Available to backorder	Washer	£5.63 £4.69
263	HV817 00 06-12 Available to backorder	Screwfor 96041036700. 96041036701. 96041036702	£5.78 £4.82
268	HV583 12 20-01 Available to backorder	Guard.Mufflerfor 96041036700. 96041036701. 96041036702	£9.62 £8.02
277	HV532 44 85-00 Available to backorder	Link	£8.86 £7.38
299	HV532 41 56-83 Available to backorder	Bracket	£14.10 £11.75
301	HV532 41 56-80 Available to backorder	Idler	£41.35 £34.46
302	HV581 42 05-01 Available to backorder	Pulley	£27.79 £23.16
303	HV872 11 06-18 Available to backorder	Bolt	£6.48 £5.40
373	HV581 46 18-01 Available to backorder	Spacer	£4.50 £3.75
374	HV581 47 52-01 Available to backorder	Arm	£7.70 £6.42
380	HV584 28 77-01 Available to backorder	Nutfor 96041036700	£1.56 £1.30
