Husqvarna TR530 - 2017-11 - Transmission

Husqvarna TR530 - 2017-11 - Transmission

Description

Husqvarna TR530

Model Year - 2017-11 - 96091003300

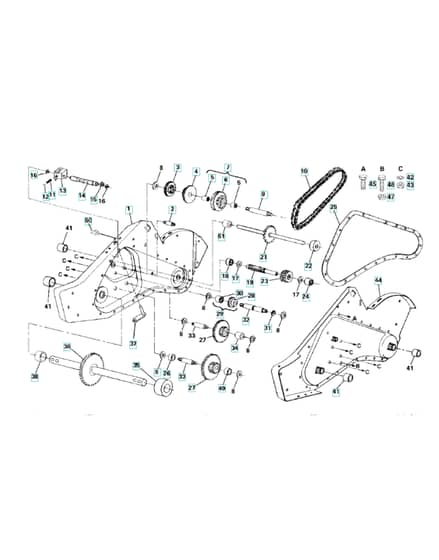

Transmission - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV532 18 36-55 Available to backorder	Transmission Complete		£1,110.62 £925.52
	6		HV532 14 45-64 Available to backorder	Pinion		£84.12 £70.10
	9		HV532 00 83-58 Available to backorder	Shaft		£21.42 £17.85
	10		HV532 00 83-71 Available to backorder	Chain		£123.36 £102.80
	11		HV532 10 03-71 Available to backorder	Spring		£3.32 £2.77
	13		HV532 00 83-53 Available to backorder	Fork		£31.42 £26.18
	17		HV532 00 13-70 Available to backorder	Washer		£4.69 £3.91
	19		HV532 15 06-95 Available to backorder	Shaft		£32.08 £26.73
	23		HV586 19 64-01 Available to backorder	Pinion		£69.60 £58.00
	24		HV532 00 50-20 Available to backorder	Bearing		£20.74 £17.28
	30		HV532 00 68-03 Available to backorder	Bearing		£6.41 £5.34
	36		HV532 10 04-36 Available to backorder	Shaft		£136.80 £114.00
	41		HV532 15 52-36 Available to backorder	Spacer		£9.79 £8.16
	42		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	45		HV817 00 05-10 Available to backorder	Bolt		£3.59 £2.99
	47		HV873 22 05-00 Available to backorder	Nut		£2.30 £1.92
	60		HV532 18 32-26 Available to backorder	Fitting		£8.03 £6.69

Description

Husqvarna TR530

Model Year - 2017-11 - 96091003300

Transmission - Parts Diagram
