Husqvarna TF435P - Transmission

Name: Husqvarna TF435P - Transmission
SKU: tf435p_transmission-group
Price: 1.43 GBP
Availability: InStock

Description

Husqvarna TF435P

Model Year - -

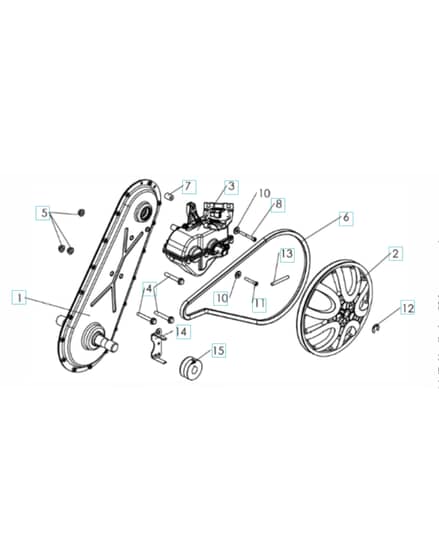

Transmission - Parts Diagram

	Part No.	Details
-1	HV732 26 16-01 Available to backorder	Nutbloc King Nut M 6 Z	£1.82 £1.52
2	HV580 31 90-01 Available to backorder	Pulleytransmission Pulley 0260	£18.24 £15.20
4	HV575 36 16-01 Available to backorder	Screwscrew H 8X55 Z Din 6921 Notched Shoulder	£1.82 £1.52
5	HV519 65 34-56 Available to backorder	Nutscrew Bdr Hm8 Smooth Base	£1.80 £1.50
6	HV580 31 64-01 Available to backorder	Beltbelt	£21.88 £18.23
7	HV580 31 48-01 Available to backorder	Spacerspacer 14X6X18.4 Z	£1.72 £1.43
10	HV531 00 83-90 Available to backorder	Washerspecial Washer 6.3X19X2.5 Z	£1.82 £1.52
12	HV580 31 42-01 Available to backorder	Retainer Ringradial Retaining Ring 012	£1.82 £1.52
13	HV519 65 30-67 Available to backorder	Shaftpulley Pin Shaft	£1.82 £1.52
15	HV544 24 39-01 Available to backorder	Pulleyengine Pulley Diam. 55 Bore 19.06	£20.06 £16.72
