Husqvarna TC114 - 970622301 - Wheels And Tires

Description

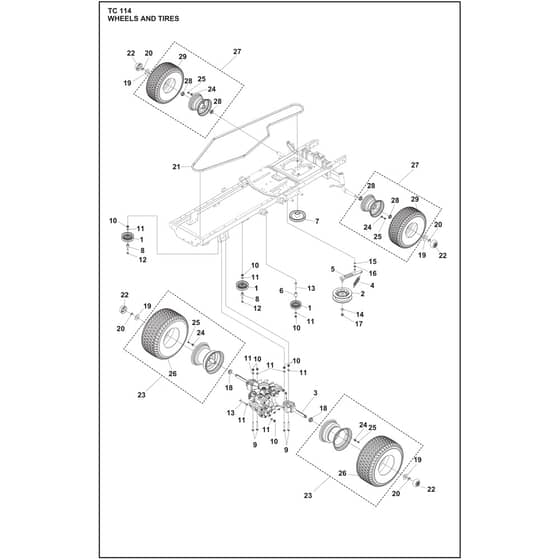

Husqvarna TC114 - 970622301 - Wheels And Tires - Parts Diagram

	Part No.	Details
1	HV531 14 79-15 Available to backorder	Pulley	£23.65 £19.71
2	HV531 14 81-61 Available to backorder	Pulley	£14.94 £12.45
3	HV531 14 79-17 Available to backorder	Transmission	£1,334.40 £1,112.00
4	HV531 14 81-27 Available to backorder	Spring	£10.03 £8.36
5	HV531 14 79-56 Available to backorder	Belt Tensioner	£18.31 £15.26
6	HV531 14 81-17 Available to backorder	Bushing	£28.34 £23.62
7	HV531 14 79-09 Available to backorder	Driving Pulley	£44.03 £36.69
8	HV531 14 81-16 Available to backorder	Bushing	£18.31 £15.26
10	HV576 64 57-04 Available to backorder	Nut	£2.96 £2.47
11	HV734 18 20-51 Available to backorder	Washer	£2.30 £1.92
12	HV725 24 57-51 Available to backorder	Screw	£5.51 £4.59
15	HV531 14 79-99 Available to backorder	Circlip	£0.71 £0.59
16	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
17	HV531 14 79-76 Available to backorder	Hexagon Locking Nut (GB.T 6187.2 M10×1.25)	£3.77 £3.14
18	HV531 14 81-21 Available to backorder	Bushing	£8.86 £7.38
20	HV531 14 81-03 Available to backorder	Circlip	£0.71 £0.59
21	HV531 14 81-86 Available to backorder	Drive Belt	£69.24 £57.70
22	HV531 14 79-50 Available to backorder	Hub Cap	£6.49 £5.41
23	HV531 14 79-42 Available to backorder	Wheel Kit	£223.56 £186.30
24	HV531 14 81-06 Available to backorder	Valve (Valve nipple)	£4.49 £3.74
25	HV531 14 81-45 Available to backorder	Cap (Valve cap)	£3.19 £2.66
26	HV531 14 81-23 Available to backorder	Tire (18×8.5-8. rubber tires)	£163.68 £136.40
27	HV531 14 79-41 Available to backorder	Wheel Kit	£153.24 £127.70
28	HV531 14 82-11 Available to backorder	Ball Bearing (Ø20Ø3510 deep groove ball bearing)	£7.26 £6.05
29	HV531 14 82-10 Available to backorder	Tire (15 x 6-6. rubber tires)	£98.64 £82.20
