Husqvarna TC114 - 970622301 - Seat

Husqvarna TC114 - 970622301 - Seat

Description

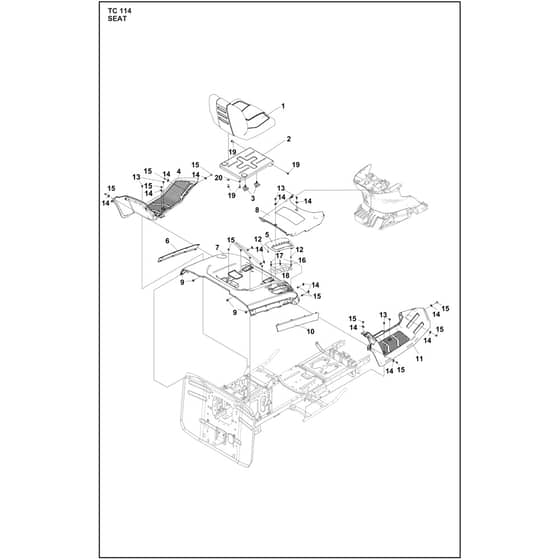

Husqvarna TC114 - 970622301 - Seat - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV548 44 12-01 Available to backorder	Seat		£236.24 £196.87
	2		HV531 14 79-88 Available to backorder	Seat Bracket		£82.08 £68.40
	3		HV531 14 78-98 Available to backorder	Adjustment Screw		£2.36 £1.97
	4		HV537 51 98-02 Available to backorder	Footplate		£45.48 £37.90
	5		HV531 14 75-95 Available to backorder	Bracket		£21.85 £18.21
	6		HV531 14 76-28 Available to backorder	Fender		£23.03 £19.19
	7		HV531 14 76-23 Available to backorder	Fender		£103.96 £86.63
	8		HV531 14 76-31 Available to backorder	Footplate		£36.02 £30.02
	9		HV531 14 77-35 Available to backorder	Bolt		£1.19 £0.99
	10		HV531 14 76-29 Available to backorder	Fender		£23.03 £19.19
	11		HV537 51 98-03 Available to backorder	Footplate		£44.88 £37.40
	12		HV729 57 76-01 Available to backorder	Screw Ccrpant		£1.66 £1.38
	13		HV547 40 31-32 Available to backorder	Bolt		£2.59 £2.16
	14		HV531 14 79-98 Available to backorder	Clip		£0.83 £0.69
	15		HV547 40 31-33 Available to backorder	Bolt		£2.59 £2.16
	16		HV734 11 47-41 Available to backorder	Washer		£2.34 £1.95
	17		HV503 20 64-20 Available to backorder	Screw Citxpanm (GB.T 6187.2 M10×1.25)		£1.93 £1.61
	18		HV503 22 10-13 Available to backorder	Hexagon Nut		£2.06 £1.72
	19		HV531 14 81-85 Available to backorder	Bolt		£1.08 £0.90
	20		HV734 11 72-01 Available to backorder	Washer		£2.02 £1.68

Description

Husqvarna TC114 - 970622301 - Seat - Parts Diagram
