Husqvarna TC112 - 970622201 - Mower Deck / Cutting Deck 01

Description

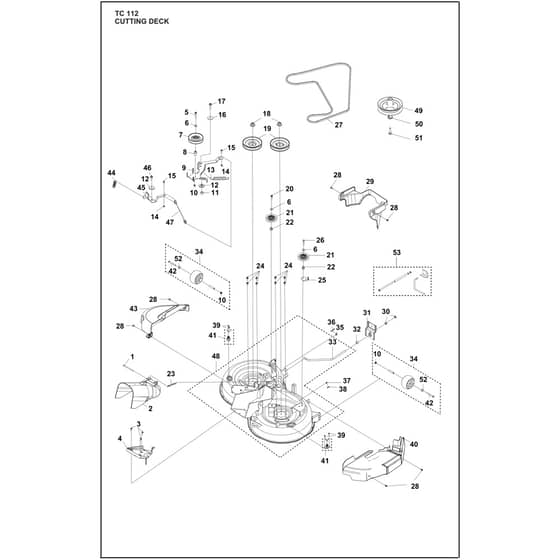

Husqvarna TC112 - 970622201 - Mower Deck / Cutting Deck - Parts Diagram

	Part No.	Details
1	HV531 14 81-05 Available to backorder	Hinge Pin	£2.71 £2.26
2	HV531 14 81-90 Available to backorder	Chute	£33.06 £27.55
3	HV599 34 93-42 Available to backorder	Bolt	£0.71 £0.59
4	HV531 14 81-91 Available to backorder	Baseplate	£15.35 £12.79
5	HV725 24 61-51 Available to backorder	Screw Ehhm	£6.29 £5.24
6	HV547 40 32-11 Available to backorder	Washer	£3.31 £2.76
7	HV531 14 81-60 Available to backorder	Pulley	£44.03 £36.69
8	HV531 14 81-15 Available to backorder	Bushing	£27.77 £23.14
9	HV531 14 81-83 Available to backorder	Belt Tensioner	£41.34 £34.45
10	HV547 40 31-03 Available to backorder	Hexagon Locking Nut	£2.96 £2.47
11	HV531 14 81-12 Available to backorder	Bushing	£20.66 £17.22
12	HV531 14 82-21 Available to backorder	Flange Washer	£4.26 £3.55
15	HV598 68 45-67 Available to backorder	Bolt	£0.97 £0.81
16	HV539 11 18-97 Available to backorder	Washer	£10.26 £8.55
17	HV531 14 82-16 Available to backorder	Bolt	£7.09 £5.91
18	HV531 14 82-19 Available to backorder	Hexagon Nut Flange	£3.89 £3.24
19	HV531 14 79-08 Available to backorder	Driving Pulley	£50.59 £42.16
20	HV506 57 01-06 Available to backorder	Screw Ehhfm	£6.29 £5.24
21	HV531 14 79-16 Available to backorder	Pulley	£22.99 £19.16
22	HV531 14 81-14 Available to backorder	Bushing	£16.54 £13.78
23	HV531 14 81-30 Available to backorder	Spring	£5.54 £4.62
24	HV547 40 32-52 Available to backorder	Bolt	£6.49 £5.41
25	HV531 14 81-87 Available to backorder	Belt Guard	£8.28 £6.90
27	HV531 14 79-04 Available to backorder	Drive Belt	£162.48 £135.40
28	HV547 40 31-32 Available to backorder	Bolt	£2.59 £2.16
29	HV531 14 79-13 Available to backorder	Belt Cover	£29.52 £24.60
31	HV531 14 79-65 Available to backorder	Mounting Plate	£30.02 £25.02
32	HV531 14 79-07 Available to backorder	Ball Joint	£1.44 £1.20
34	HV531 14 82-01 Available to backorder	Support Wheel	£20.06 £16.72
36	HV531 14 81-56 Available to backorder	Split Pin	£1.18 £0.98
37	HV547 40 32-07 Available to backorder	Washer	£2.14 £1.78
38	HV531 14 81-55 Available to backorder	Split Pin	£1.18 £0.98
39	HV547 40 32-58 Available to backorder	Bolt	£2.83 £2.36
40	HV531 14 78-89 Available to backorder	Belt Cover	£31.31 £26.09
41	HV531 14 82-03 Available to backorder	Nozzle Assy	£11.21 £9.34
42	HV547 40 31-17 Available to backorder	Bolt	£6.49 £5.41
43	HV531 14 79-14 Available to backorder	Belt Cover	£30.71 £25.59
44	HV531 14 81-33 Available to backorder	Spring	£7.68 £6.40
45	HV531 14 79-49 Available to backorder	Brake Lever	£17.14 £14.28
48	HV547 31 67-03 Available to backorder	Cutting Deck Kit	£251.16 £209.30
49	HV531 14 79-10 Available to backorder	Belt Tensioner Wheel	£100.92 £84.10
50	HV531 14 81-20 Available to backorder	Bushing	£59.05 £49.21
51	HV577 07 71-01 Available to backorder	Screw	£8.28 £6.90
