Husqvarna TC100i - 970745002 - Steering

Name: Husqvarna TC100i - 970745002 - Steering
SKU: TC100i_970745002_FS_289771_Original_20file-group
Price: 0.59 GBP
Availability: InStock

Part No. TC100i_970745002_FS_289771_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

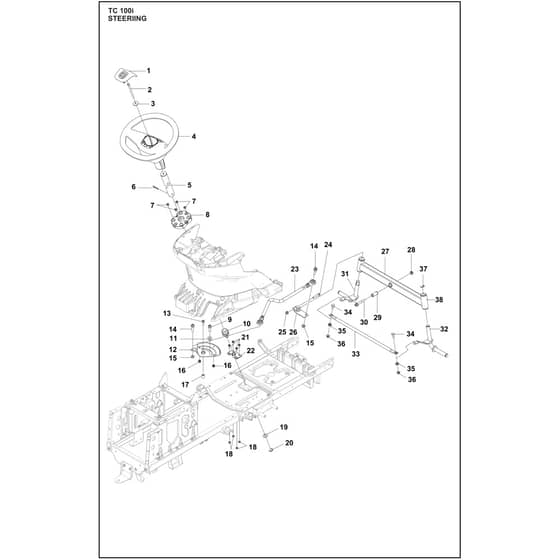

Husqvarna TC100i - 970745002 - Steering - Parts Diagram

	Part No.	Details
1	HV531 14 75-97 Available to backorder	Lid	£13.00 £10.83
2	HV593 50 59-01 Available to backorder	Screw	£2.26 £1.88
3	HV576 35 16-01 Available to backorder	Washer	£5.80 £4.83
4	HV531 14 75-65 Available to backorder	Steering Wheel	£91.32 £76.10
5	HV531 14 79-70 Available to backorder	Steering Column	£57.86 £48.22
6	HV531 14 81-04 Available to backorder	Guide Pin	£1.40 £1.17
7	HV547 40 31-33 Available to backorder	Bolt	£2.59 £2.16
8	HV531 14 79-69 Available to backorder	Adapter Plate	£15.94 £13.28
9	HV599 34 93-01 Available to backorder	Bolt	£0.71 £0.59
10	HV531 14 79-84 Available to backorder	Gear	£49.26 £41.05
11	HV531 14 81-11 Available to backorder	Bushing	£13.00 £10.83
12	HV531 14 79-83 Available to backorder	Gear Wheel	£54.34 £45.28
13	HV531 14 82-14 Available to backorder	Bolt	£6.49 £5.41
14	HV531 14 82-15 Available to backorder	Bolt	£7.09 £5.91
15	HV586 05 01-01 Available to backorder	Nut	£3.91 £3.26
16	HV531 14 81-58 Available to backorder	Collar	£1.18 £0.98
17	HV531 14 81-10 Available to backorder	Bushing	£13.00 £10.83
19	HV504 45 73-01 Available to backorder	Washer	£3.84 £3.20
20	HV531 14 81-01 Available to backorder	Circlip	£0.71 £0.59
21	HV547 40 31-19 Available to backorder	Bolt	£2.83 £2.36
22	HV531 14 79-68 Available to backorder	Support Plate	£7.09 £5.91
23	HV531 14 79-80 Available to backorder	Tie Rod	£53.15 £44.29
24	HV546 30 39-01 Available to backorder	Bolt	£6.06 £5.05
25	HV731 71 18-51 Available to backorder	Hexagon Nut	£3.04 £2.53
26	HV531 14 79-82 Available to backorder	Mounting Plate	£12.37 £10.31
27	HV531 14 79-73 Available to backorder	Front Axle	£103.92 £86.60
28	HV531 14 79-76 Available to backorder	Hexagon Locking Nut	£3.77 £3.14
29	HV531 14 81-18 Available to backorder	Bushing	£24.20 £20.17
30	HV596 88 97-17 Available to backorder	Screw	£1.24 £1.03
31	HV531 14 79-75 Available to backorder	Spindle	£61.80 £51.50
32	HV531 14 79-74 In stock	Spindle	£61.80 £51.50
33	HV531 14 79-81 Available to backorder	Tie Rod	£20.66 £17.22
34	HV531 14 82-18 Available to backorder	Bolt	£6.49 £5.41
35	HV531 14 81-13 Available to backorder	Bushing	£7.68 £6.40
36	HV576 64 57-04 Available to backorder	Nut	£2.96 £2.47
37	HV531 14 81-03 Available to backorder	Circlip	£0.71 £0.59
38	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
